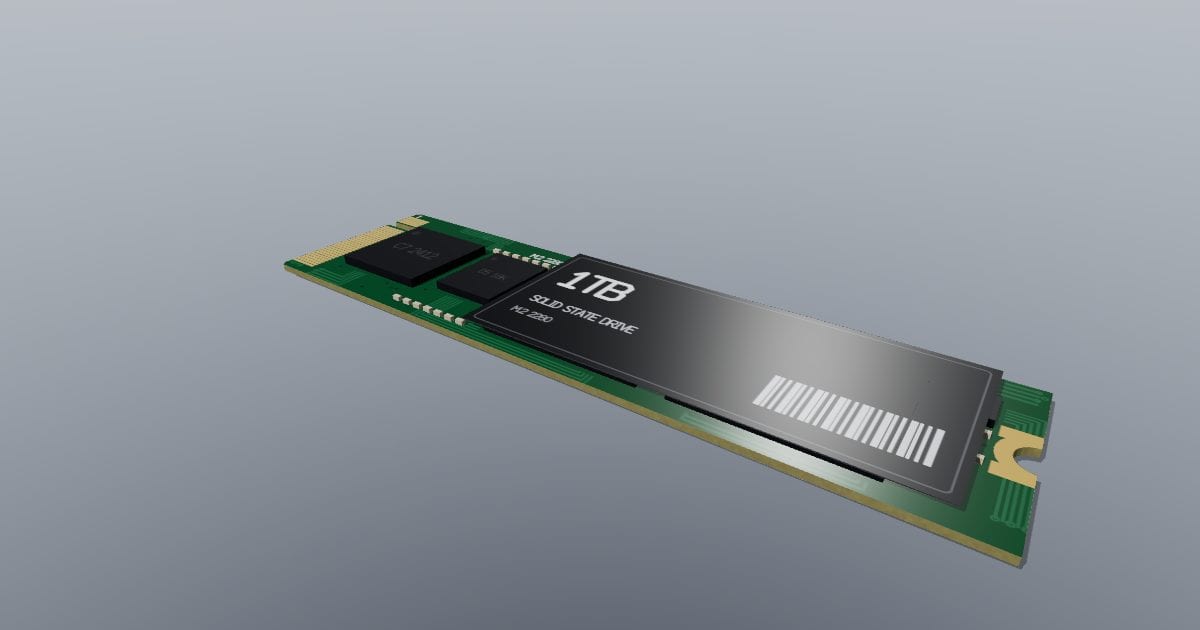

M.2 SSD
3D model · GLB · 5.5 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
M.2 SSD: M.2 2280 solid state drive, board 80.0 x 22.0 x 0.80 mm (measured; the 2280 standard size), 80.0 x 22.0 x 2.1 mm overall (measured, X x Y x Z) incl. the label and components. M-key gold-finger edge with 67 contacts (75 positions on a 0.5 mm pitch, odd pins on top), controller and cache packages, two flash packages under a black label (1TB), passive parts and the semicircular screw notch. Lies flat, label up, connector at -X. Generic design with no logos or brand names. Overall 80 x 22 x 2 mm. Nominal size: 80.00 x 22.00 x 2.13 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: m-2-ssd.glb · added 2026-10-25 · available until 2030-10-25. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
