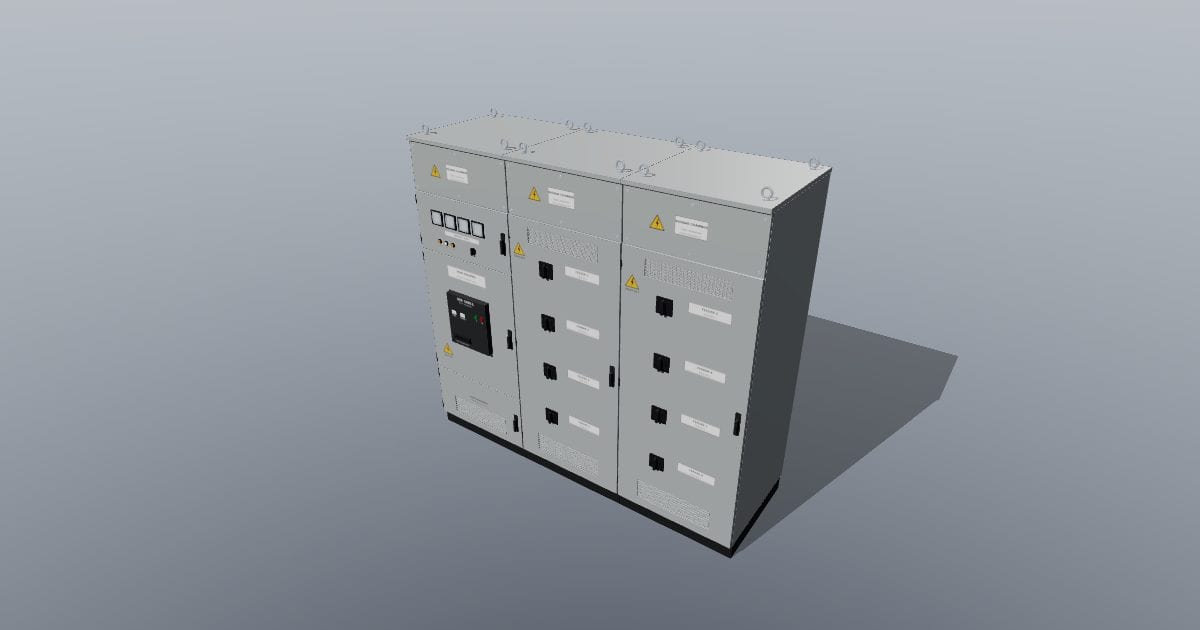

Low-voltage Form 2 switchgear cubicle rowOpen in 3D

Low-voltage Form 2 switchgear cubicle row

3D model · GLB · 2.3 MB

Open in 3D viewerDownload GLB

Need another format? Open it in the viewer and use Export.

Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0

Source: Innerscene - original model

Description

Low-voltage Form 2 switchgear cubicle row. Overall 2404.4 x 856.0 x 2265.9 mm (width x depth x height, including handles, terminals and clips): three 800 mm sections: air circuit breaker incomer with ammeters, voltmeter, phase lamps and selector; two feeder sections with eight door-mounted MCCB rotary handles; busbar chambers behind bolted covers (Form 2), plinth, lifting eyes, front and rear louvres. Original unbranded model; printed ratings are generic, not a certification. Overall 2.4 x 0.9 x 2.3 m. Nominal size: 2404.42 x 856.00 x 2265.87 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

Electronics & PCBReal-world scaleTextured / materialsAssemblyminiature circuit breakermcbrcdrcbomccbcircuit breakerfusefuse holderisolator switchcontactorterminal blockswitchgearswitchboarddistribution boardpanelboardelectrical panellv switchgearcubiclesmotor control centerelectricalsubstationcabinet

File: low-voltage-form-2-switchgear-cubicle-row.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
