Jersey barrier
3D model · GLB · 3.0 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

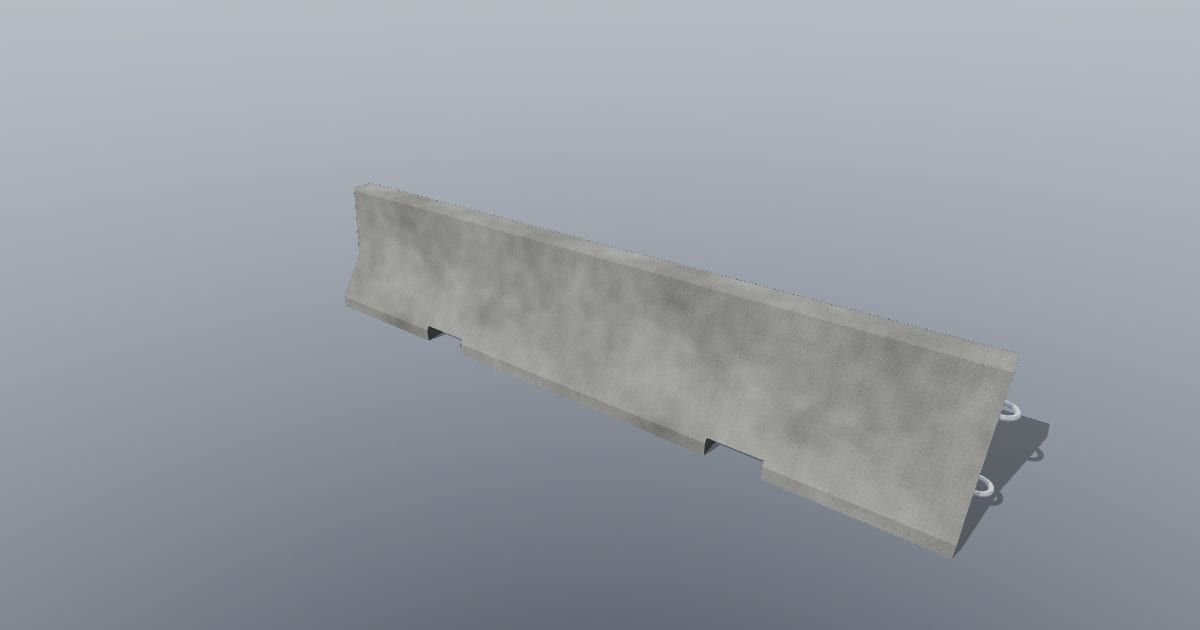

Jersey barrier: precast New Jersey safety-shape barrier segment, 4.14 x 0.61 x 0.81 m overall including the steel connection loops (measured, X x Y x Z). Concrete body 4.00 m long, 0.61 m (24 in) wide at the base, 0.15 m (6 in) wide at the top with 15 mm chamfers and 0.813 m (32 in) high, with a 76 mm vertical reveal, 55 and 84 degree faces (authored profile) and two drainage slots through the base. Original unbranded model. Overall 4.1 x 0.6 x 0.8 m. Nominal size: 4144.00 x 610.00 x 813.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: jersey-barrier.glb · added 2026-10-24 · available until 2031-10-24. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
