Highway on-ramp

Description

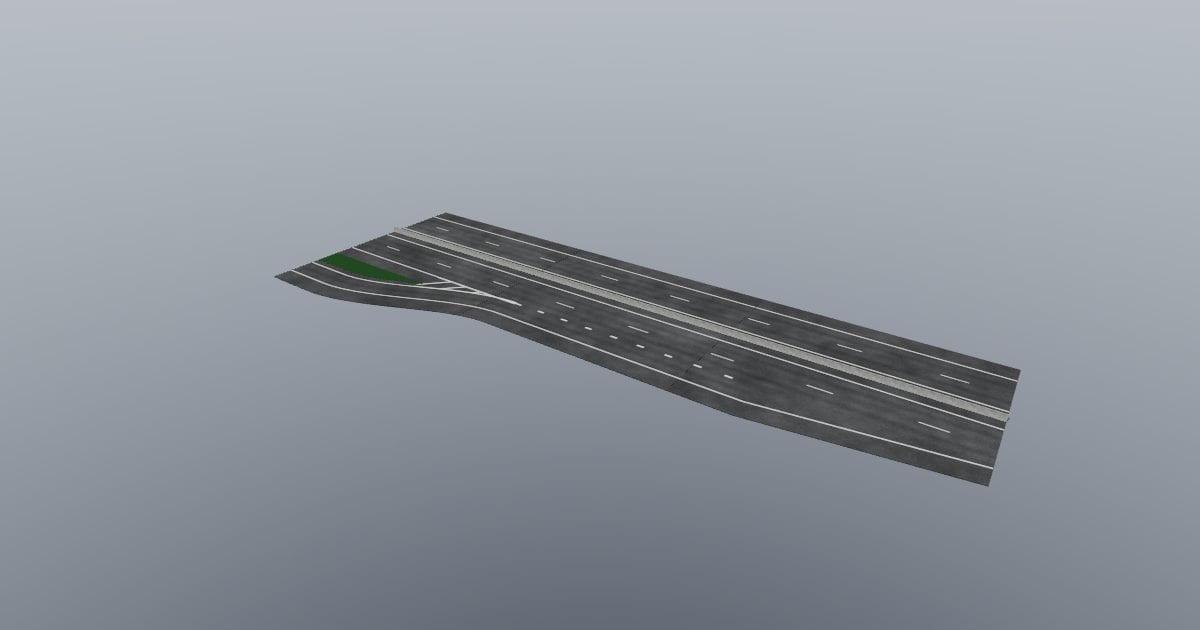

Highway on-ramp: highway entrance-ramp module, 96.00 x 35.25 m footprint, 0.91 m overall height (measured, X x Y x Z), on a 96 m (8-tile) run. Measured cross-section at the west highway and east highway edges: 11.695 m asphalt + 0.610 m-wide New Jersey concrete median barrier (0.813 m high) + 11.695 m asphalt = 24.00 m (D24 profile), road surface 0.00 m. At the ramp connector (west edge, measured): 7.75 m of ramp asphalt from 3.00 m left to 4.75 m right of the connector at road level, separated from the highway by a 3.50 m grass gore. Painted (authored): a 3.50 m ramp lane with 1.25 m and 3.00 m shoulders, a hatched painted gore, a 36 m parallel acceleration lane with a 0.30 m dotted lane line and a 24 m taper (compressed for a modular kit). Painted per direction (authored): a 3.00 m outer shoulder, two 3.50 m lanes, a 1.00 m inner shoulder and 0.70 m of median strip to the barrier toe, 0.20 m edge lines and 3 m / 9 m broken lane lines. Base 0.10 m deep. Right-hand traffic; original unbranded model. Overall 96 x 35.3 x 0.9 m. Nominal size: 96000.00 x 35250.00 x 913.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

File: highway-on-ramp.glb · added 2026-10-24 · available until 2030-10-24. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
