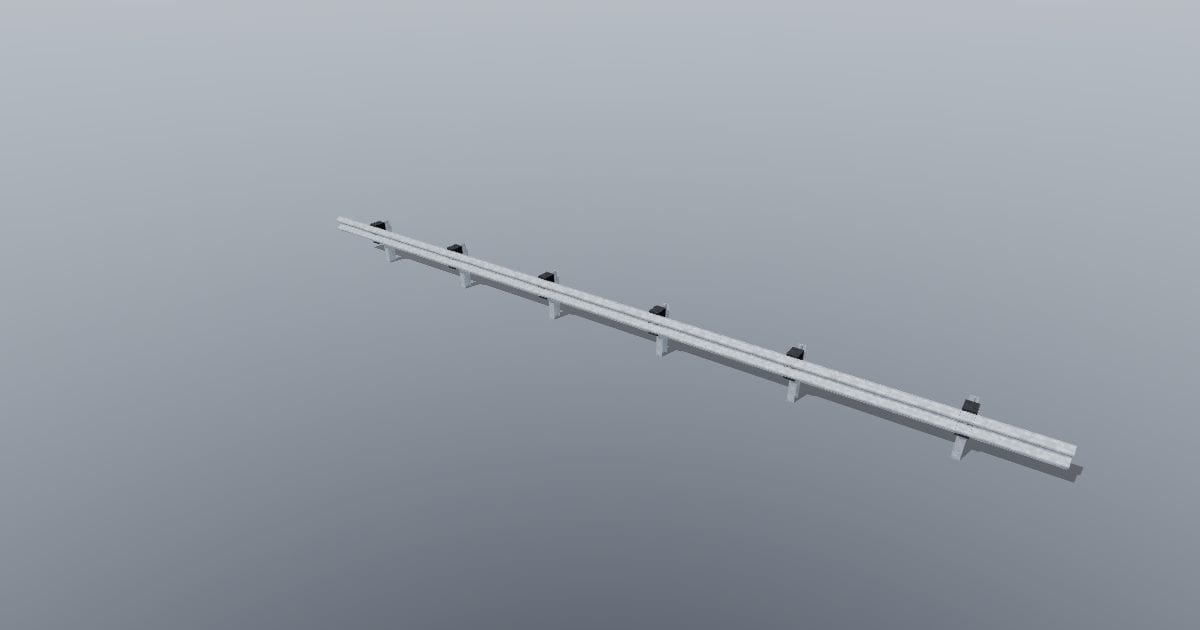

Guardrail
3D model · GLB · 3.4 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Guardrail: 12 m modular W-beam guardrail run, 12.00 x 0.45 x 0.81 m overall (measured, X x Y x Z). Galvanized W-beam 12.00 m long and 311 mm deep with its top at 0.787 m (31 in), on six steel I-section posts with plastic blockouts spaced 2.00 m, the end posts 1.00 m from each end so runs chain at constant spacing; button-head splice and post bolts. Original unbranded model. Overall 12 x 0.4 x 0.8 m. Nominal size: 12000.00 x 446.50 x 811.50 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: guardrail.glb · added 2026-10-24 · available until 2031-10-24. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
