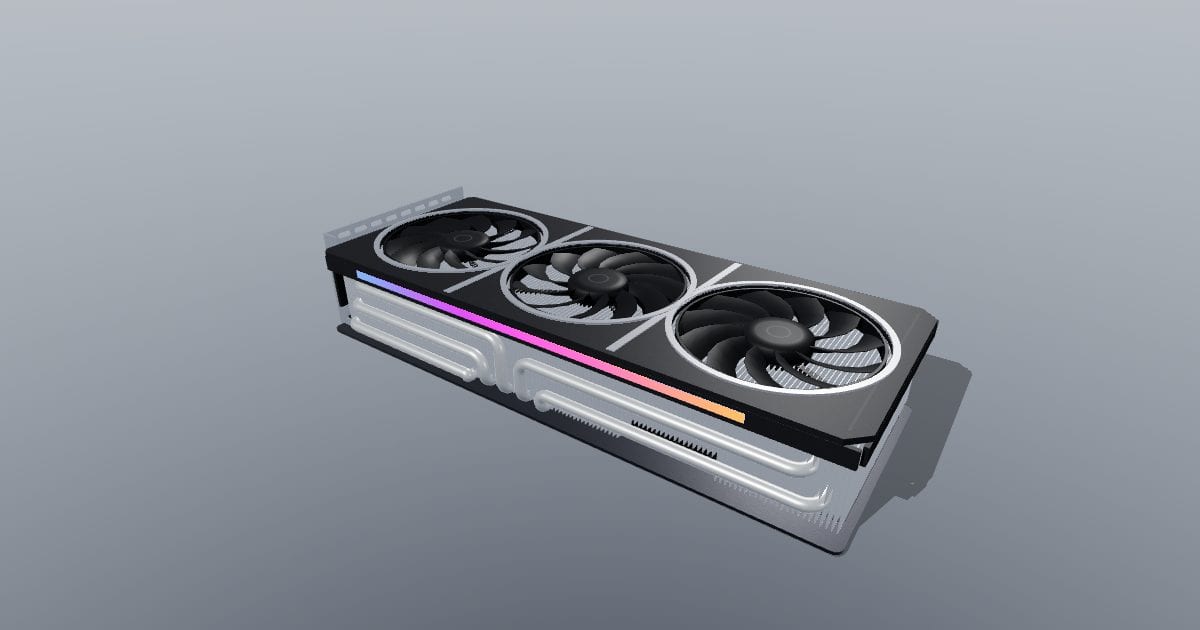

Graphics card with fans
3D model · GLB · 11.2 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Graphics card with fans: generic triple-fan graphics card, 305.9 x 130.4 x 59.1 mm overall (measured, X x Y x Z) incl. the bracket. Full-height PCIe board 111.15 mm tall and 1.57 mm thick (measured) with an x16 gold-finger edge connector (164 contacts, 82 per side, on a 1.0 mm pitch) and its key notch; three-slot steel bracket 120.02 mm tall and 59.1 mm wide with three DisplayPort and one HDMI outputs and vent slots; three 88.8 mm fans with eleven ringed blades (the middle fan counter-rotating), gunmetal shroud with brushed aluminium accents and an RGB strip, aluminium fin stack with five nickel-plated heat pipes visible along the top edge, brushed backplate with a flow-through window, two 8-pin power sockets. Lies on its backplate, fans up. Generic design with no logos or brand names. Overall 306 x 130 x 59 mm. Nominal size: 305.86 x 130.35 x 59.07 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: graphics-card-with-fans.glb · added 2026-10-25 · available until 2030-10-25. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
