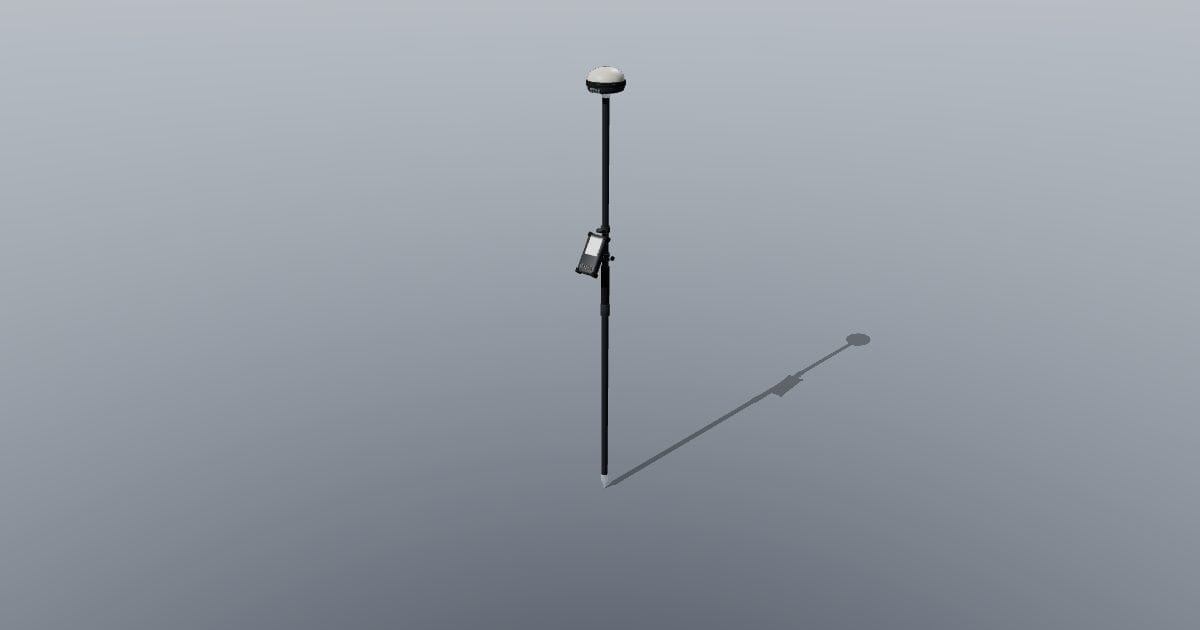

GNSS rover receiver on survey pole with field controller
3D model · GLB · 7.7 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
GNSS rover receiver on survey pole with field controller. Overall 153 x 233 x 2094 mm (X width x Y depth x Z height): GNSS RTK rover: a round smart-antenna receiver 153 mm across (charcoal housing with a rubber bumper ring, status LEDs, power button and an ivory radome) on a two-section carbon fibre survey pole with a twist clamp, foam grip, circular level and steel point, and a cradle holding a rugged field controller (lit screen, keys and corner bumpers) tilted 35 degrees back toward the operator at the front (-Y). The antenna mount is 2000 mm above the pole point and the radome top 2094 mm (the overall height); the controller makes the model 233 mm deep (Y) against the manifest's 200 mm. Original unbranded model. Overall 0.2 x 0.2 x 2.1 m. Nominal size: 153.00 x 233.28 x 2093.70 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: gnss-rover-receiver-on-survey-pole-with-field-controller.glb · added 2026-10-23 · available until 2030-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
