Gimbal

Description

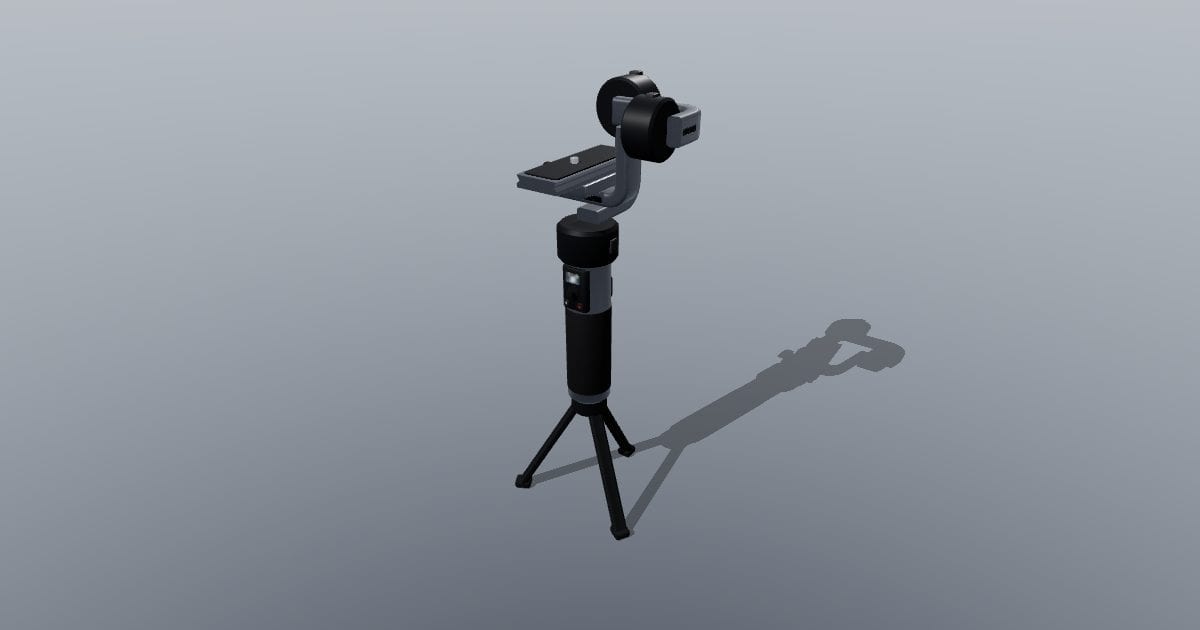

Gimbal: generic three-axis handheld camera gimbal without a camera, standing on its folding mini tripod, 152.4 x 138.0 x 399.9 mm overall (measured width x depth x height); 123.1 x 135.0 x 283.3 mm without the tripod (measured; the compact gimbal class is about 180 x 159 x 296 mm unfolded). Rubber-gripped handle 41.2 mm in diameter and 142.0 mm long with a control panel (status screen, joystick, record and mode buttons) and a rear trigger; pan, roll and tilt motors 51.9, 49.9 and 45.9 mm in diameter (measured) joined by gunmetal anodised arms with axis locks and printed balance scales; camera clamp with a 38.0 x 110.0 mm dovetail quick-release plate (measured) and a camera screw. Stands on its mini tripod. Generic design with no logos or brand names. Overall 152 x 138 x 400 mm. Nominal size: 152.39 x 138.00 x 399.94 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

File: gimbal.glb · added 2026-10-25 · available until 2030-10-25. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
