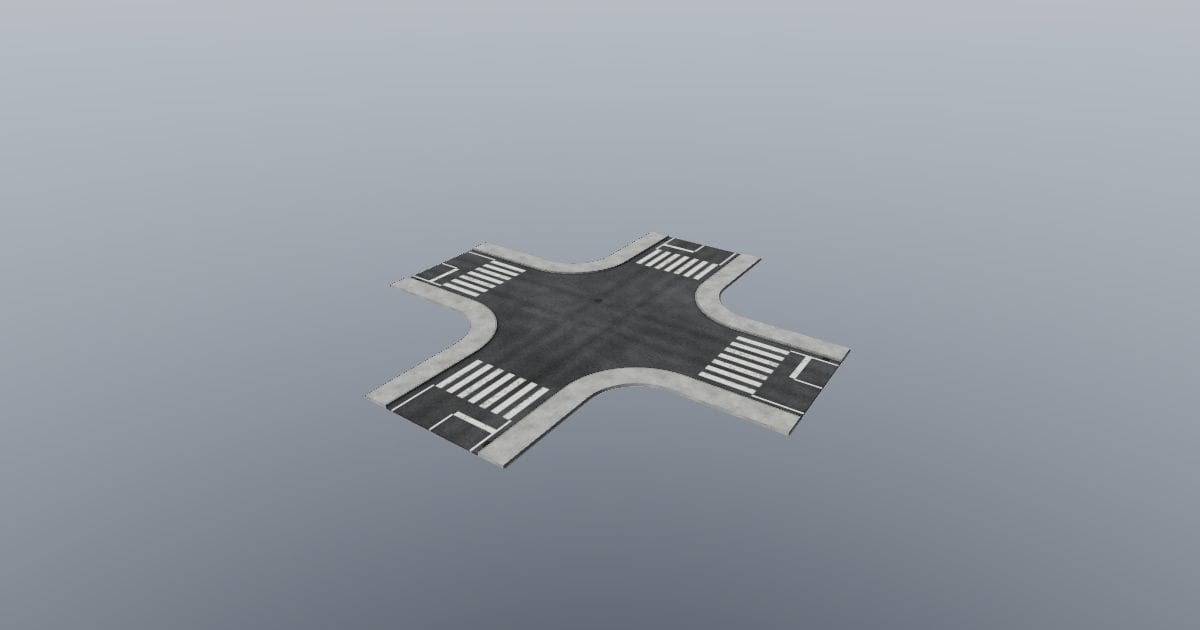

Four-way road intersection
3D model · GLB · 6.9 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Four-way road intersection: four-way crossroads module, 36.00 x 36.00 m footprint, 0.25 m overall height (measured, X x Y x Z), cross-shaped with sidewalk corners. Measured cross-section at the west, east, south and north edges: 1.85 m concrete sidewalk + 0.15 m precast curb + 8.00 m asphalt carriageway + 0.15 m precast curb + 1.85 m concrete sidewalk = 12.00 m (S12 profile); road surface 0.00 m, curb and sidewalk tops +0.15 m, i.e. a 0.15 m curb reveal. Curb returns 6.00 m radius at all four corners (measured along the diagonals). Base 0.10 m deep. Painted in the colour texture (authored, not geometry): two 3.50 m lanes inside 0.50 m edge strips, 0.15 m white lines; zebra crossings (0.50 m stripes, 4.0 m long) on every arm, 0.40 m stop lines and solid approach centre lines. Right-hand traffic; original unbranded model. Overall 36 x 36 x 0.3 m. Nominal size: 36000.00 x 36000.00 x 250.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: four-way-road-intersection.glb · added 2026-10-24 · available until 2030-10-24. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
