Four-lane divided road
3D model · GLB · 5.2 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

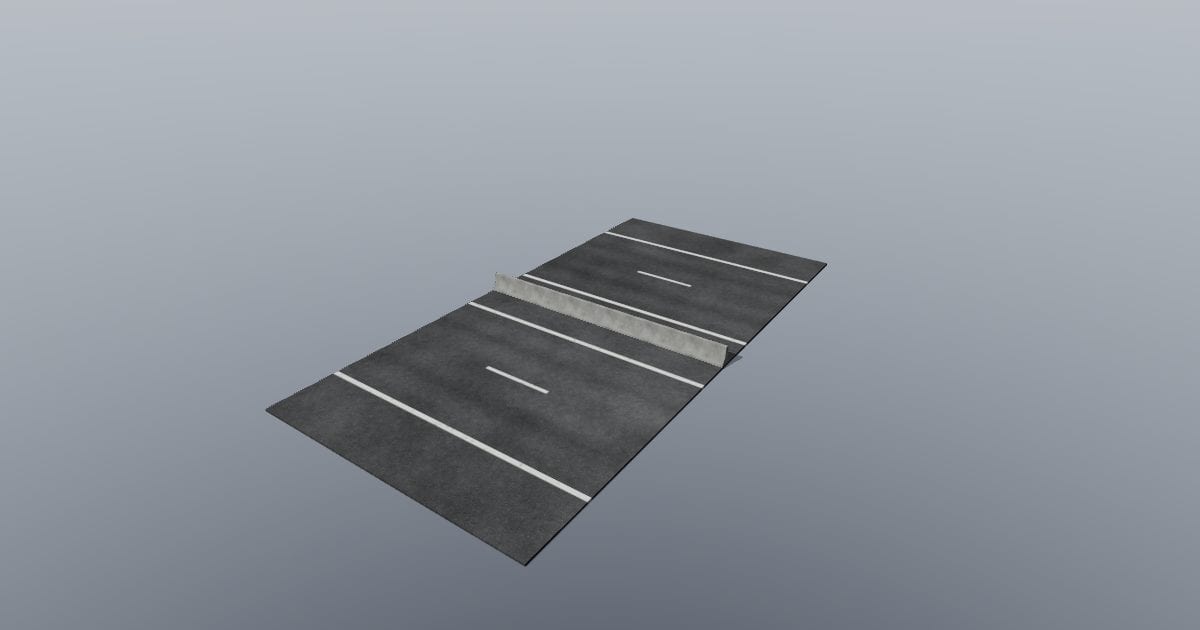

Four-lane divided road: 12 m module of a four-lane divided road, 12.00 x 24.00 m footprint, 0.91 m overall height (measured, X x Y x Z). Measured cross-section at the west and east edges: 11.695 m asphalt + 0.610 m-wide New Jersey concrete median barrier (0.813 m high) + 11.695 m asphalt = 24.00 m (D24 profile), road surface 0.00 m. Base 0.10 m deep. Painted per direction (authored): a 3.00 m outer shoulder, two 3.50 m lanes, a 1.00 m inner shoulder and 0.70 m of median strip to the barrier toe, 0.20 m edge lines and 3 m / 9 m broken lane lines. No curbs: the asphalt ends in a vertical edge for verges or terrain. Right-hand traffic; original unbranded model. Overall 12 x 24 x 0.9 m. Nominal size: 12000.00 x 24000.00 x 913.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: four-lane-divided-road.glb · added 2026-10-24 · available until 2030-10-24. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
