Five-metre telescopic levelling staff (E pattern)
3D model · GLB · 2.9 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

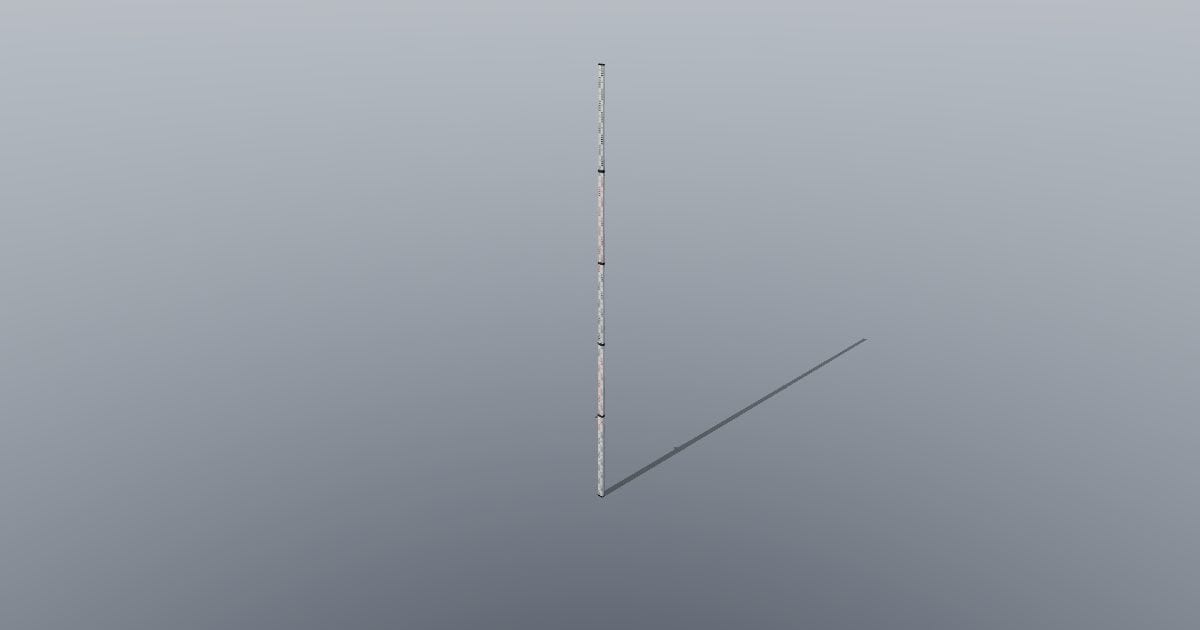

Five-metre telescopic levelling staff (E pattern). Overall 118 x 40 x 5000 mm (X width x Y depth x Z height): telescopic levelling staff extended to 5 m (5000 mm, the overall height; 1.22 m when closed): five white powder-coated aluminium box sections (70 x 35 mm bottom section, each upper section 3.6 mm smaller) with an E-pattern front (10 mm elements, figures in metres and tenths such as 18 for 1.8 m, black and red alternating each metre), a centimetre scale on the back, collars and spring lock buttons at the joints, a foot cap and a top cap. A clip-on circular level on the left side of the bottom section sets the overall width (118 mm in X); the depth is 40 mm (Y) at the foot cap. Original unbranded model. Overall 0.1 x 0 x 5 m. Nominal size: 118.10 x 40.00 x 5000.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
