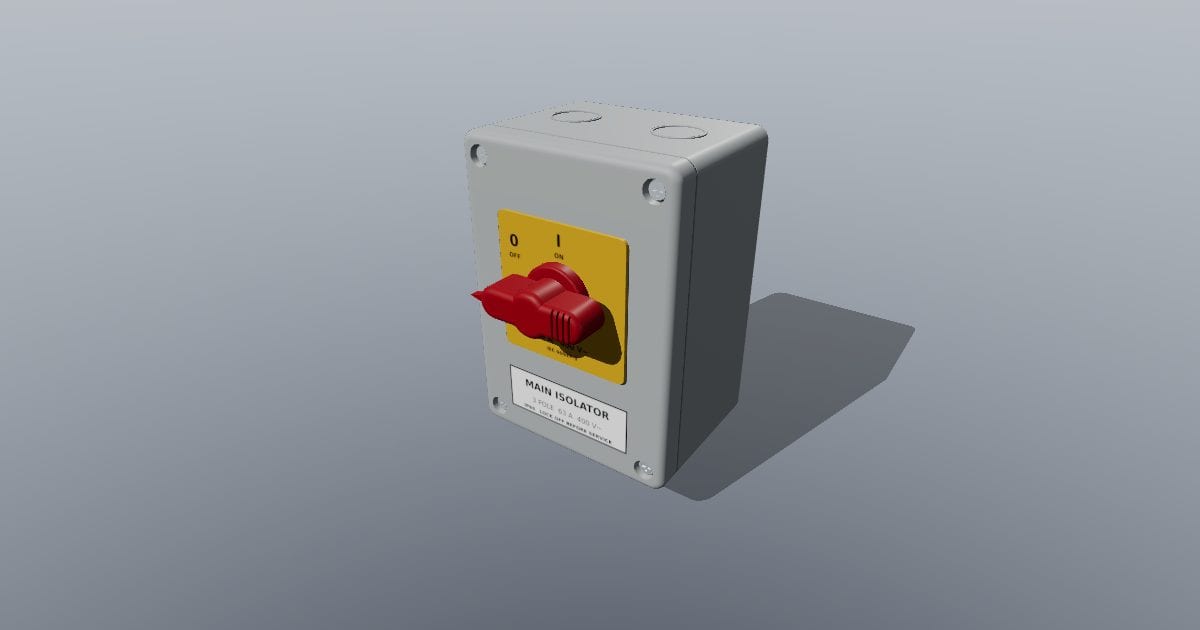

Enclosed rotary isolator switch 63 A 3P
3D model · GLB · 614 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Enclosed rotary isolator switch 63 A 3P. Overall 100.0 x 97.6 x 161.5 mm (width x depth x height, including handles, terminals and clips): IP65 surface enclosure 100 x 140 mm with a three-pole 63 A rotary main switch: red handle on a yellow plate shown OFF, gasketed lid with four captive screws, two M20 cable glands and top knock-outs. Original unbranded model; printed ratings are generic, not a certification. Overall 100 x 98 x 161 mm. Nominal size: 100.00 x 97.60 x 161.50 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: enclosed-rotary-isolator-switch-63-a-3p.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
