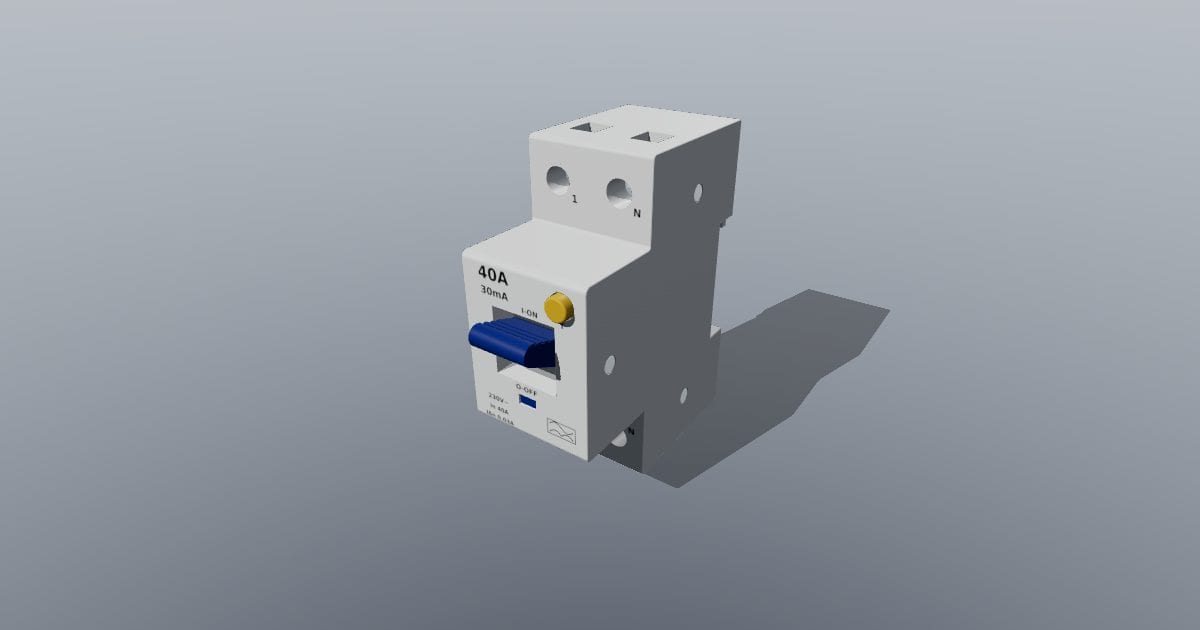

DIN-rail RCD 2P 40 A 30 mA
3D model · GLB · 624 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
DIN-rail RCD 2P 40 A 30 mA. Overall 35.0 x 78.1 x 91.4 mm (width x depth x height, including handles, terminals and clips): two-module residual current device 40 A / 30 mA type A, single moulded housing, wide toggle shown ON, yellow test button, trip indicator, cage terminals and TH35 rail clip. Original unbranded model; printed ratings are generic, not a certification. Overall 35 x 78 x 91 mm. Nominal size: 35.00 x 78.07 x 91.40 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: din-rail-rcd-2p-40-a-30-ma.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
