DIN-rail RCBO C16 30 mAOpen in 3D

DIN-rail RCBO C16 30 mA

3D model · GLB · 721 KB

Open in 3D viewerDownload GLB

Need another format? Open it in the viewer and use Export.

Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0

Source: Innerscene - original model

Description

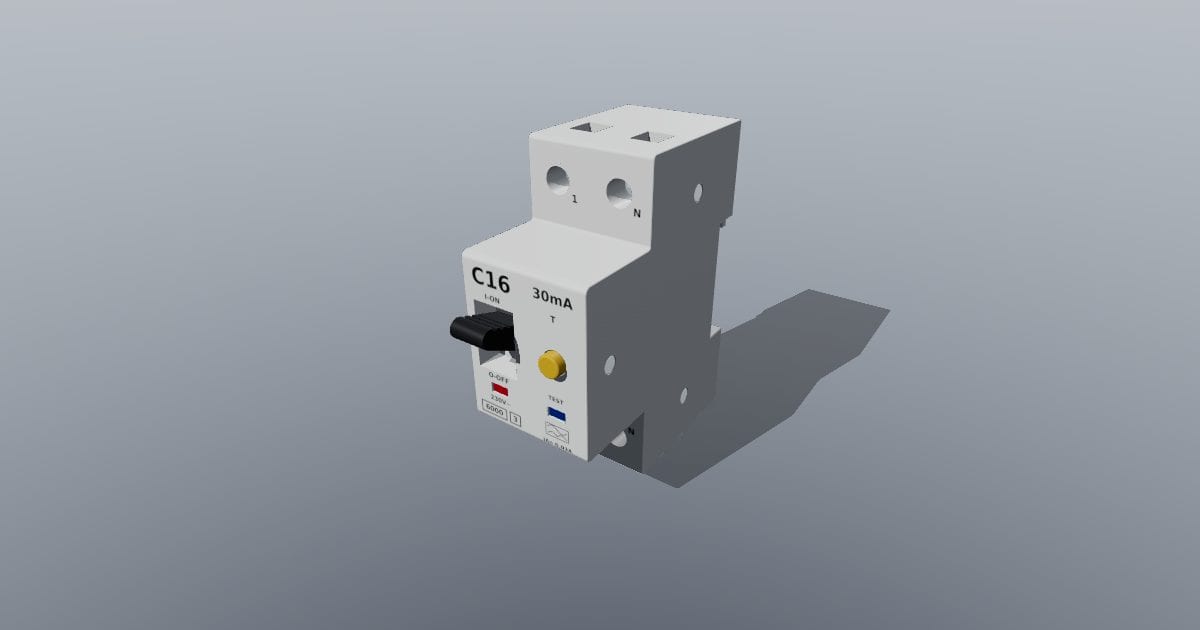

DIN-rail RCBO C16 30 mA. Overall 35.0 x 78.1 x 91.4 mm (width x depth x height, including handles, terminals and clips): RCBO (combined MCB and RCD) C16 / 30 mA, 1P+N in two modules, toggle shown ON, test button, contact and residual trip indicators, cage terminals and TH35 rail clip. Original unbranded model; printed ratings are generic, not a certification. Overall 35 x 78 x 91 mm. Nominal size: 35.00 x 78.05 x 91.40 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
