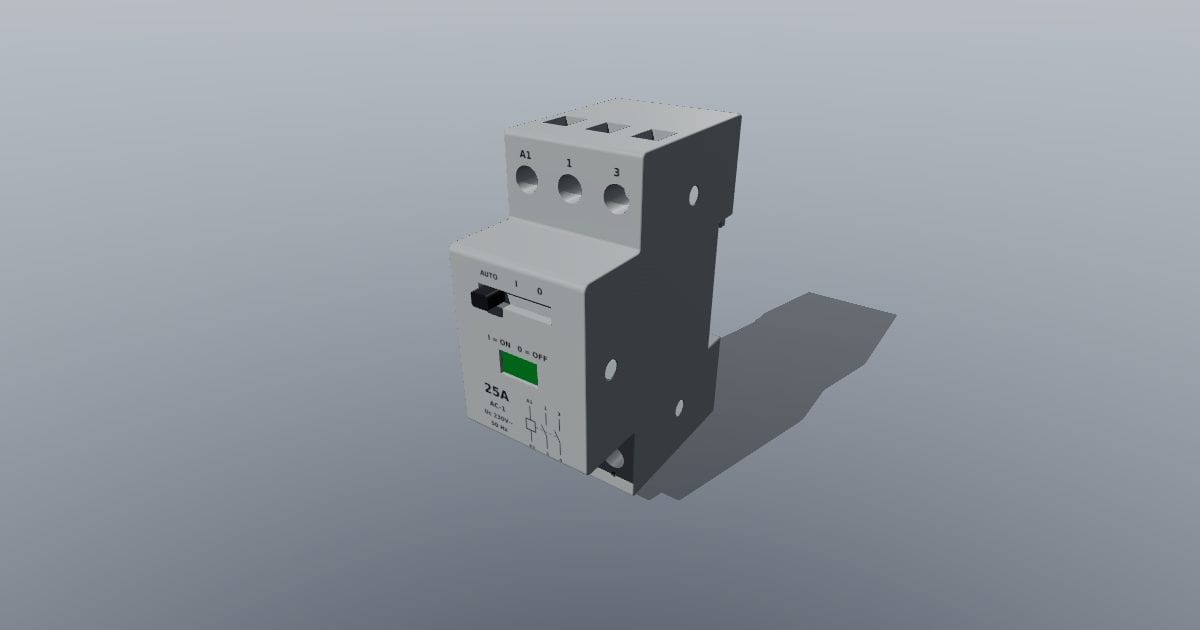

DIN-rail modular contactor 25 A 2NO
3D model · GLB · 621 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
DIN-rail modular contactor 25 A 2NO. Overall 35.0 x 66.2 x 88.4 mm (width x depth x height, including handles, terminals and clips): two-module installation contactor 25 A AC-1, 2 NO contacts, 230 V coil, AUTO / I / 0 manual selector, contact state window, A1-A2 coil and 1-2, 3-4 power terminals, TH35 rail clip. Original unbranded model; printed ratings are generic, not a certification. Overall 35 x 66 x 88 mm. Nominal size: 35.00 x 66.20 x 88.40 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: din-rail-modular-contactor-25-a-2no.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
