DIN-rail miniature circuit breaker MCB 4P C16Open in 3D

DIN-rail miniature circuit breaker MCB 4P C16

3D model · GLB · 894 KB

Open in 3D viewerDownload GLB

Need another format? Open it in the viewer and use Export.

Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0

Source: Innerscene - original model

Description

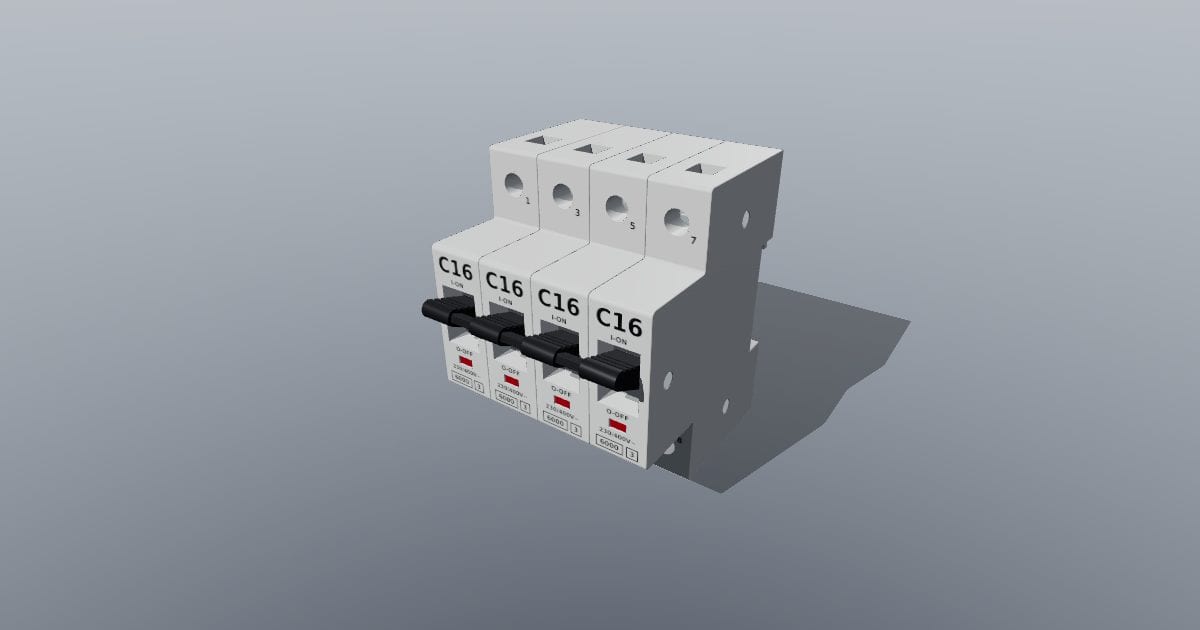

DIN-rail miniature circuit breaker MCB 4P C16. Overall 70.0 x 78.1 x 91.4 mm (width x depth x height, including handles, terminals and clips): four-pole MCB with C16 print, four riveted 17.5 mm pole housings, linked toggles shown ON, cage terminals with combination screws, TH35 rail hooks and sliding latches. Original unbranded model; printed ratings are generic, not a certification. Overall 70 x 78 x 91 mm. Nominal size: 70.00 x 78.05 x 91.40 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

Electronics & PCBReal-world scaleTextured / materialsAssemblyminiature circuit breakermcbrcdrcbomccbcircuit breakerfuseswitchgearbreakerscircuit breakersconsumer unitfuse boxelectrical panelpanel boardprotection deviceelectrical

File: din-rail-miniature-circuit-breaker-mcb-4p-c16.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
