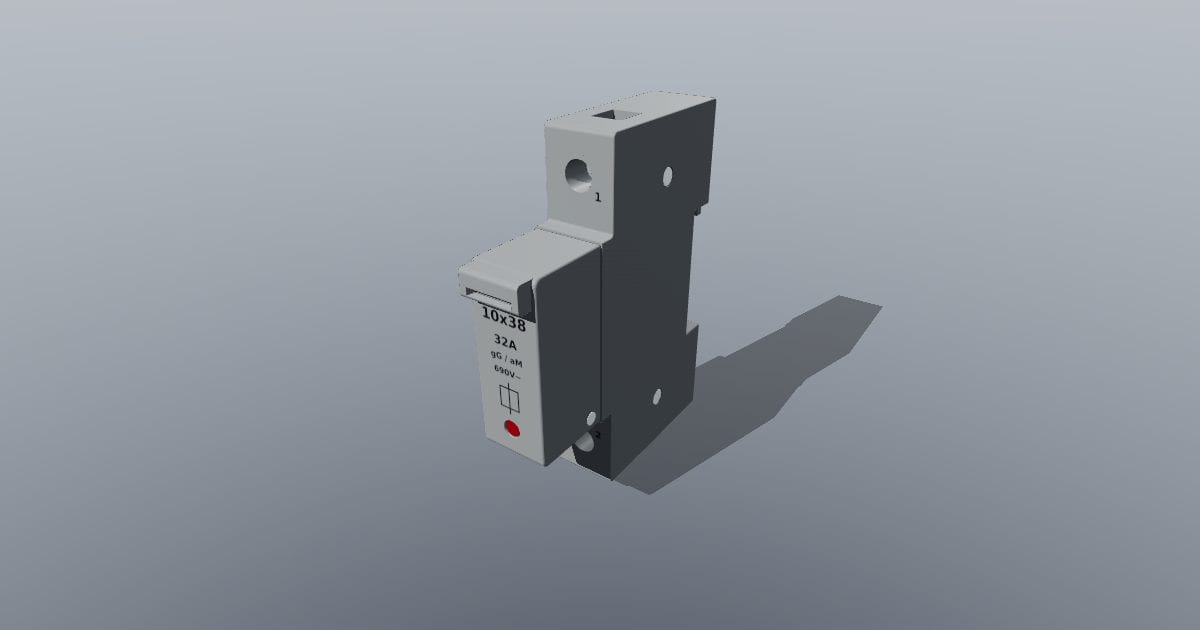

DIN-rail cartridge fuse holder 10 x 38
3D model · GLB · 488 KB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
DIN-rail cartridge fuse holder 10 x 38. Overall 17.5 x 72.6 x 91.4 mm (width x depth x height, including handles, terminals and clips): one-module DIN-rail holder for 10 x 38 mm cartridge fuses, hinged carrier shown closed with blown-fuse indicator lens, cage terminals and TH35 rail clip. Original unbranded model; printed ratings are generic, not a certification. Overall 18 x 73 x 91 mm. Nominal size: 17.50 x 72.60 x 91.40 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: din-rail-cartridge-fuse-holder-10-x-38.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
