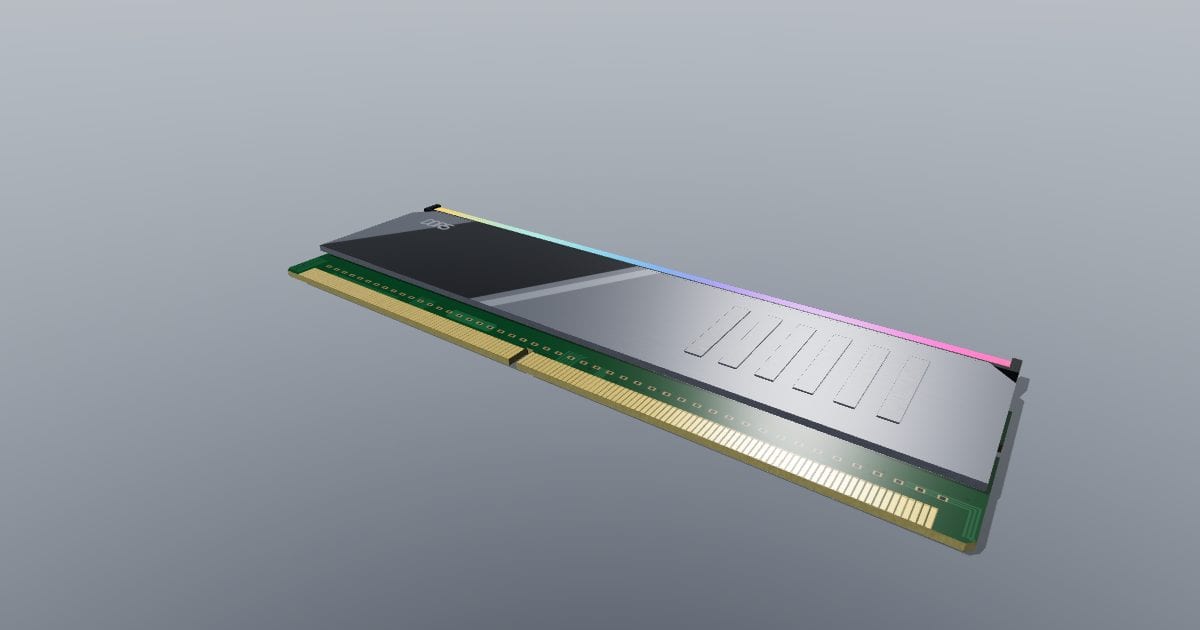

DDR5 RAM stick
3D model · GLB · 3.6 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
DDR5 RAM stick: generic DDR5 desktop memory module (UDIMM), PCB 133.35 x 31.25 x 1.27 mm (measured; the JEDEC module size), 133.4 x 43.0 x 6.1 mm overall (measured, X x Y x Z) incl. heat spreaders and light bar. 288 gold contacts on a 0.85 mm pitch with an off-centre key notch (authored position), latch notches at both ends, gunmetal aluminium heat spreaders with a printed design and an RGB light bar (lit). Lies flat, contacts toward -Y. Generic design with no logos or brand names. Overall 133 x 43 x 6 mm. Nominal size: 133.35 x 43.00 x 6.10 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: ddr5-ram-stick.glb · added 2026-10-25 · available until 2031-10-25. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
