Crosswalk

Description

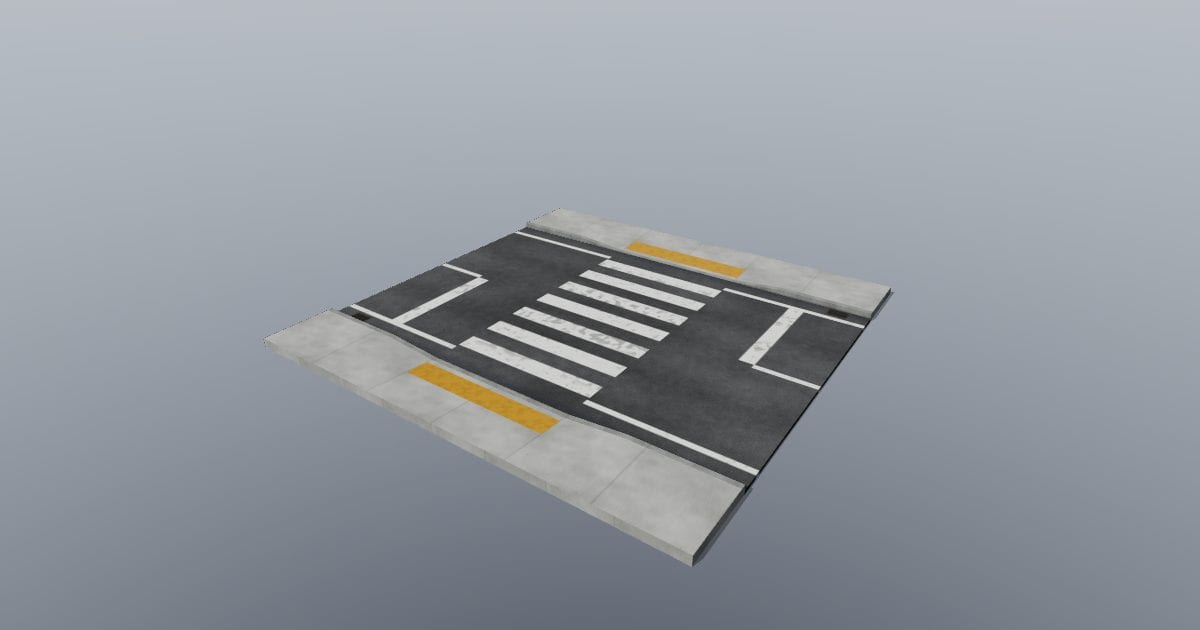

Crosswalk: straight 12 m crossing module, 12.00 x 12.00 m footprint, 0.25 m overall height (measured, X x Y x Z). Measured cross-section at the west and east edges: 1.85 m concrete sidewalk + 0.15 m precast curb + 8.00 m asphalt carriageway + 0.15 m precast curb + 1.85 m concrete sidewalk = 12.00 m (S12 profile); road surface 0.00 m, curb and sidewalk tops +0.15 m, i.e. a 0.15 m curb reveal. At the crossing the curbs drop to a 6 mm upstand over 4.00 m with 1.50 m curb flares (measured along the curb line), the sidewalk ramping down at about 1:12; two yellow truncated-dome warning strips measure 4.00 x 0.61 m in plan. Base 0.10 m deep. Painted (authored): a 4.0 m zebra crossing of seven 0.50 m stripes with 0.50 m gaps, 0.40 m stop lines 2.0 m before it, 0.15 m lines and the 3.50 m lanes. Right-hand traffic; original unbranded model. Overall 12 x 12 x 0.3 m. Nominal size: 12000.00 x 12000.00 x 250.00 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

File: crosswalk.glb · added 2026-10-24 · available until 2030-10-24. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
