CPU with cooler
3D model · GLB · 10.1 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

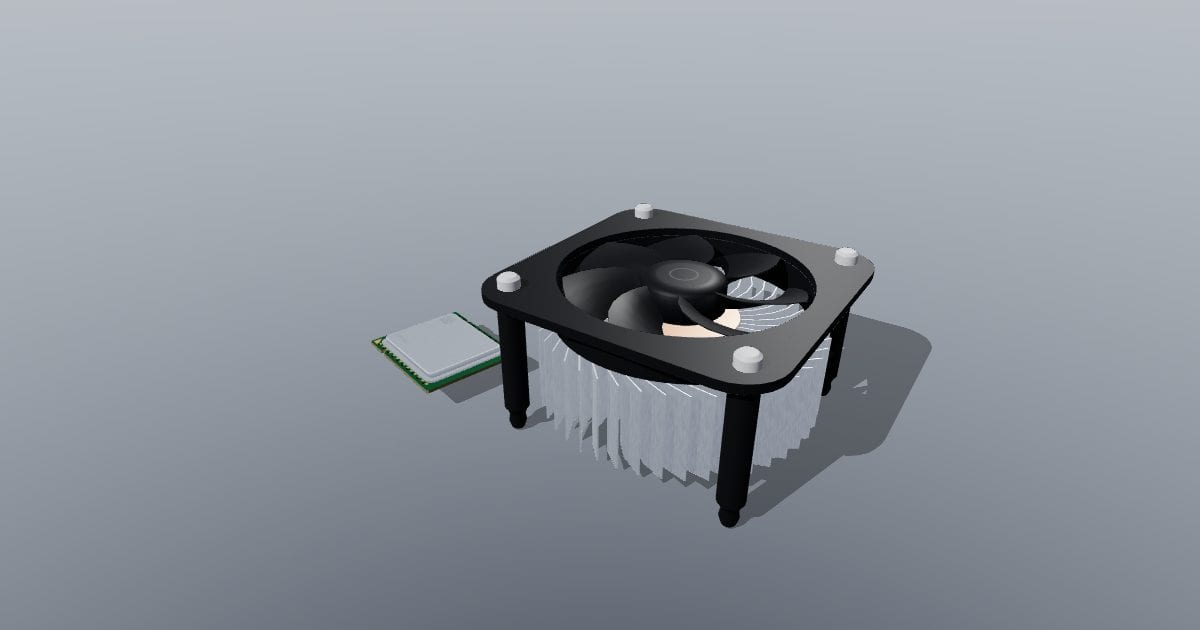

CPU with cooler: generic desktop processor beside its boxed top-down cooler, 161.2 x 100.5 x 56.2 mm overall (measured, X x Y x Z) incl. the push-pin feet. LGA package 45.0 x 37.5 x 4.15 mm (measured) with a nickel-plated heat spreader on a green substrate, alignment notches and land pads underneath; cooler 98.0 mm square and 44.0 mm tall from base to shroud (measured) with a copper core, 44 curved aluminium fins, pre-applied thermal compound, a black shroud with a 77.4 mm seven-blade fan and four push pins on a 78.0 mm square (the LGA cooler hole spacing). Generic design with no logos or brand names. Overall 161 x 100 x 56 mm. Nominal size: 161.23 x 100.49 x 56.20 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: cpu-with-cooler.glb · added 2026-10-25 · available until 2030-10-25. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
