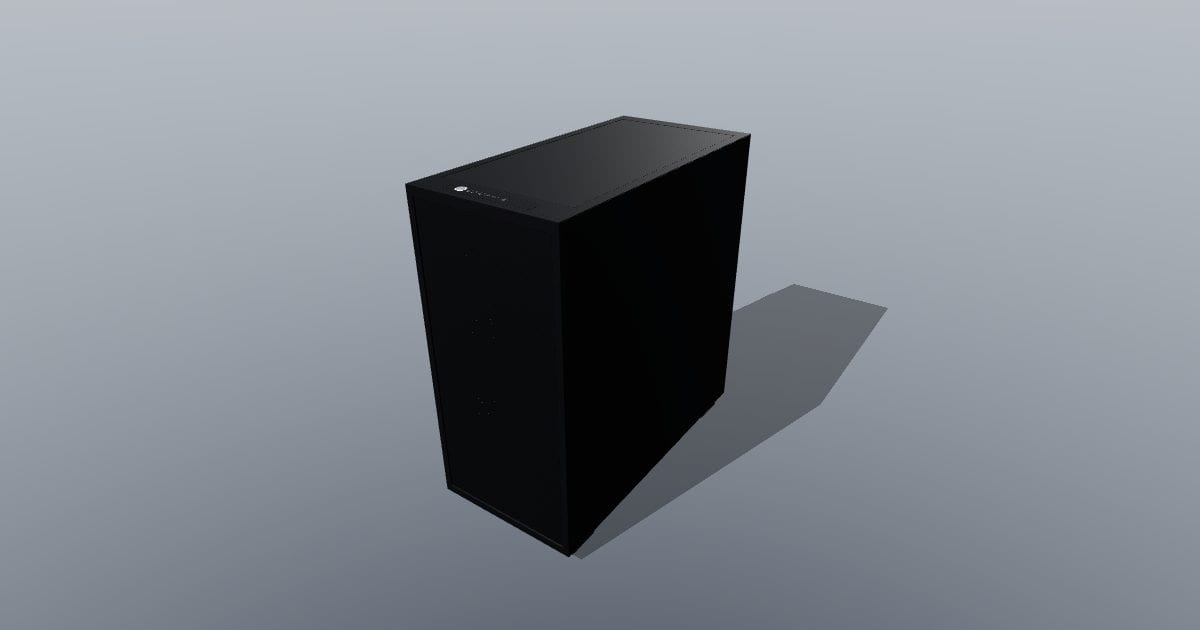

Closed mid-tower PC case
3D model · GLB · 19.2 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
Closed mid-tower PC case: generic ATX mid-tower PC case with the 4.0 mm tempered-glass side panel closed (light-smoke tint, black frit border) over the empty interior, 230.0 x 470.0 x 490.0 mm incl. its rubber feet (measured, width x depth x height), 231.6 x 475.8 x 491.6 mm overall (measured, X x Y x Z). Black powder-coated steel with a hexagonal mesh front, perforated top dust filter and top I/O (power button with light ring, two USB-A, USB-C, audio jack); inside a gunmetal grey motherboard tray with nine brass standoffs on the ATX hole pattern, CPU cut-out and three rubber cable grommets, a black PSU shroud with vents, three 120 mm RGB intake fans behind the front and a 120 mm rear exhaust fan; rear I/O aperture 44.45 x 158.75 mm (the ATX aperture upright), seven vented slot covers on a 20.32 mm pitch and a 150.0 x 86.0 mm power supply opening (measured). Stands on its feet, front at -Y, glass side at -X. Generic design with no logos or brand names. Overall 232 x 476 x 492 mm. Nominal size: 231.60 x 475.80 x 491.60 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: closed-mid-tower-pc-case.glb · added 2026-10-25 · available until 2029-10-25. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
