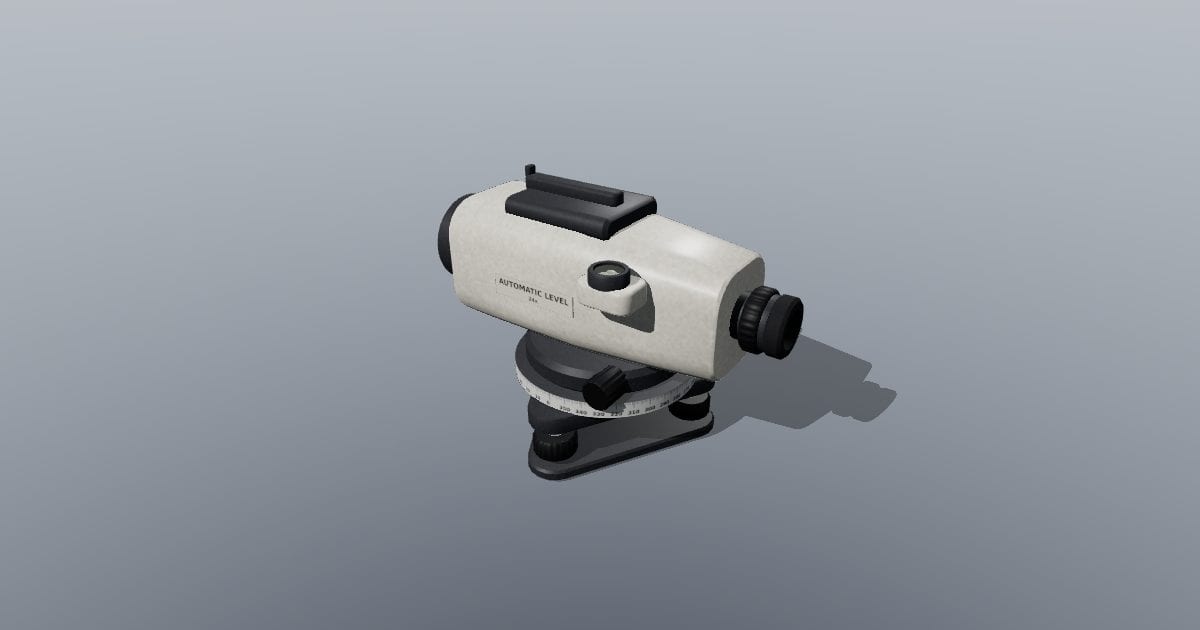

Automatic survey level (auto level, 24x)

Description

Automatic survey level (auto level, 24x). Overall 209 x 117 x 148 mm (X width x Y depth x Z height): automatic (compensator) level of the 24x class with its line of sight along X: an objective hood with a 36 mm class coated lens toward -X, an eyepiece with a diopter ring and rubber eyecup toward +X, a focusing knob on the right (+Y), a peep sight and front sight on the compensator cover, endless horizontal drives on both sides, a circular level on a bracket at the front (-Y), a horizontal circle graduated 0 to 359 degrees clockwise, and a three-screw base with a 5/8 in thread. It is 209 mm long (X), 117 mm across the knobs (Y) and 148 mm high to the front sight; the manifest envelope is 210 x 140 x 140 mm (the knobs of this design stay narrower and the front sight adds height). Original unbranded model. Overall 209 x 117 x 148 mm. Nominal size: 208.80 x 116.70 x 148.10 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

File: automatic-survey-level-auto-level-24x.glb · added 2026-10-23 · available until 2030-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
