ATX motherboard
3D model · GLB · 19.0 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

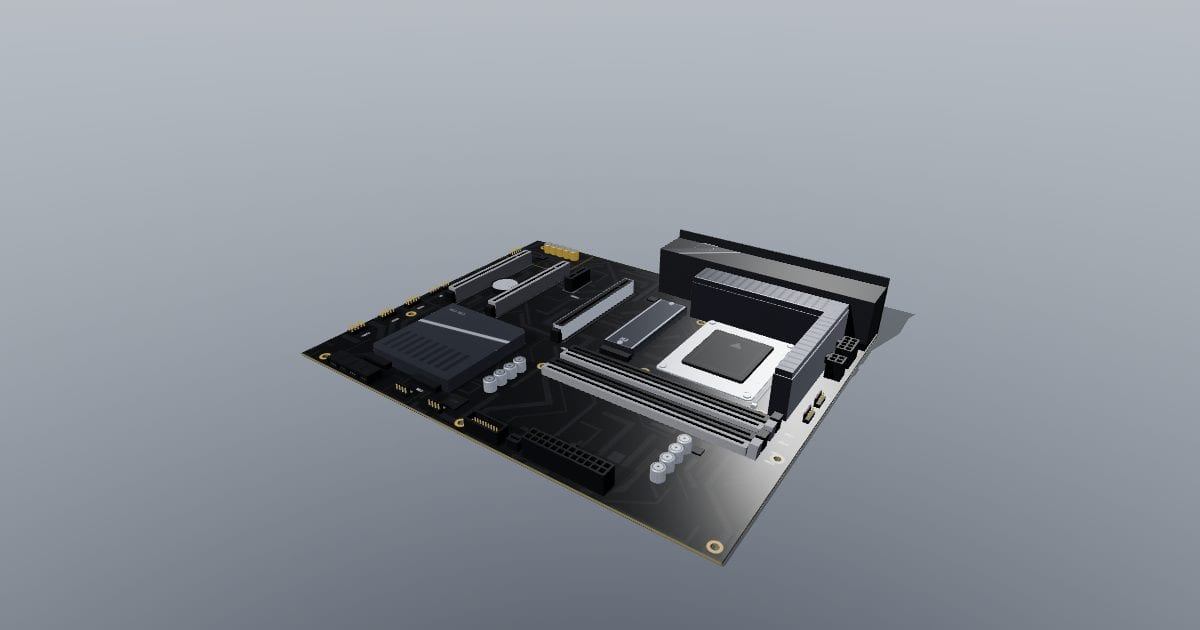

ATX motherboard: generic ATX motherboard, board 305.0 x 244.0 x 1.60 mm (measured; the ATX 12 x 9.6 in size), 305.0 x 252.3 x 44.5 mm overall (measured, X x Y x Z) incl. the rear I/O shield and antenna connectors. Nine 4.0 mm mounting holes on the ATX pattern (holes A, C, F, G, H, J, K, L and M; positions measured on the board), LGA socket with load plate, lever and protective cap inside four cooler holes on a 78.0 mm square, L-shaped VRM heatsink, four DDR5 slots, three PCIe x16 slots (the top one steel-armoured) and one x1 slot on the 20.32 mm slot pitch, three M.2 slots (two under the chipset heatsink, one under its own heatsink), 24-pin, 8-pin and 4-pin power connectors, four SATA ports, fan, front-panel, USB and audio headers, battery holder; rear I/O shield 158.75 x 44.45 mm (measured) with USB-A, USB-C, LAN, audio, DisplayPort and HDMI ports and printed legends; black PCB with copper under the mask, white silkscreen and gold pads. Lies flat, component side up, rear I/O at +Y. Generic design with no logos or brand names. Overall 305 x 252 x 44 mm. Nominal size: 305.01 x 252.34 x 44.45 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: atx-motherboard.glb · added 2026-10-25 · available until 2029-10-25. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
