All-in-one liquid cooler
3D model · GLB · 12.6 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

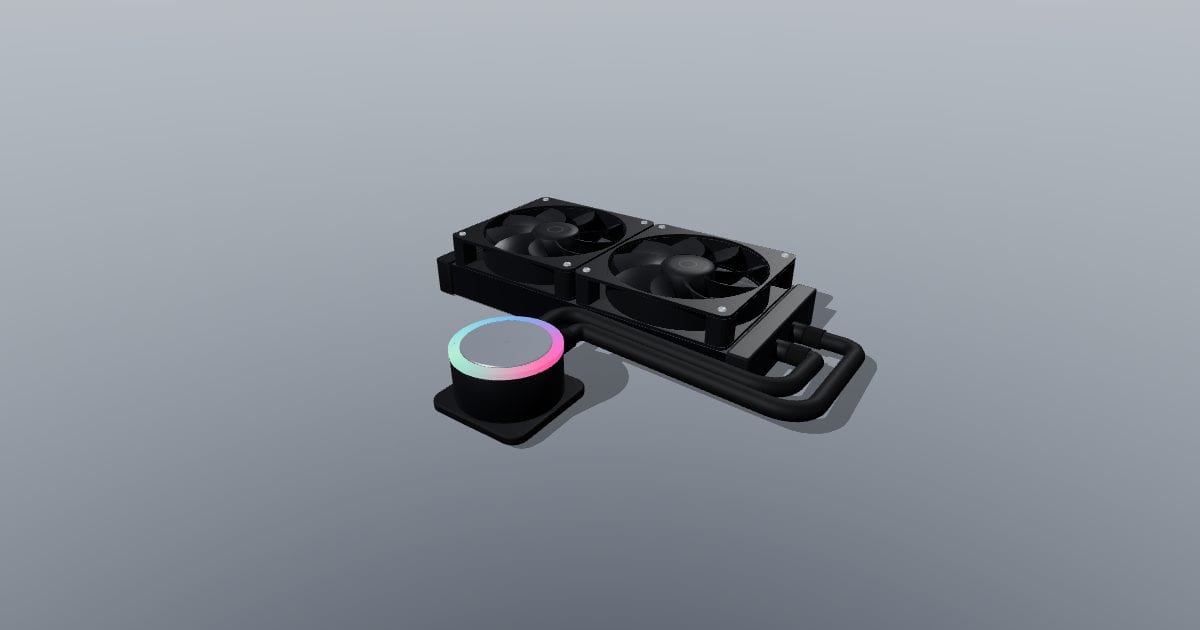

All-in-one liquid cooler: generic 240 mm all-in-one liquid cooler, 330.5 x 248.0 x 54.8 mm overall (measured, X x Y x Z). Radiator 277.0 mm long incl. its end tanks, core 120.0 mm wide and 27.0 mm thick (measured), two 120 x 120 x 25 mm fans screwed on top, two braided sleeved tubes 12 mm across with black ferrules, pump block 72.0 mm square (80.0 mm deep incl. the two tube outlets, measured) on a copper cold plate with a lit RGB ring around a brushed aluminium cap. Radiator lies flat with the fans up, pump in front (-Y). Generic design with no logos or brand names. Overall 330 x 248 x 55 mm. Nominal size: 330.48 x 248.00 x 54.80 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: all-in-one-liquid-cooler.glb · added 2026-10-25 · available until 2030-10-25. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
