5 V buck converter module (DC-DC step-down)
3D model · GLB · 1.2 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

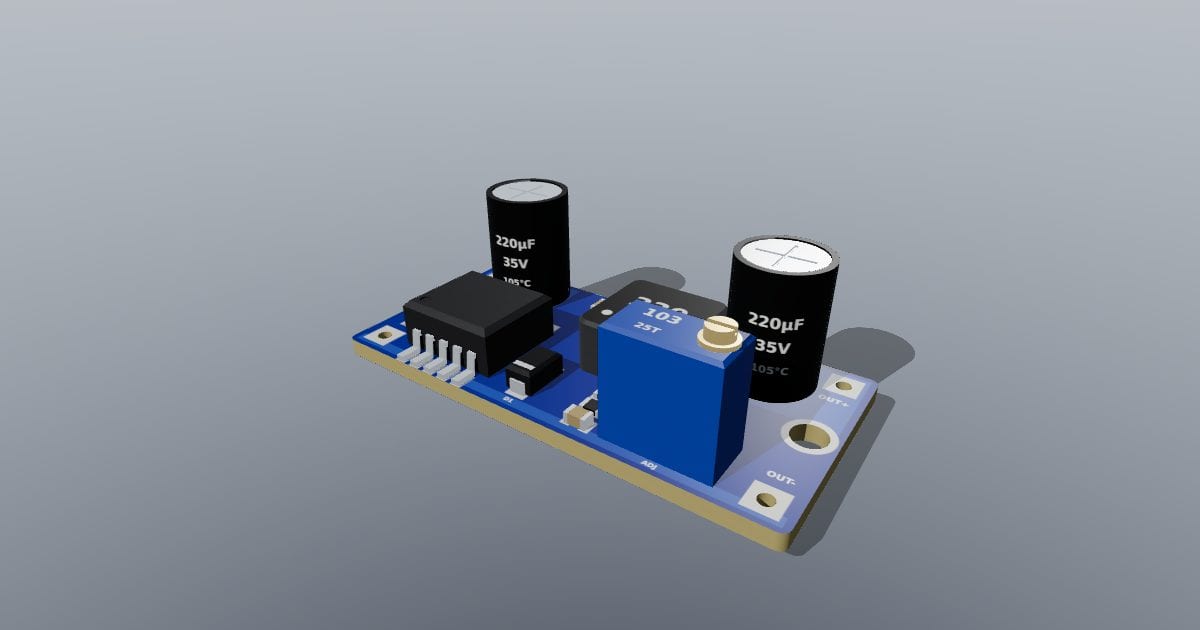

5 V buck converter module (DC-DC step-down). Overall 43.2 x 21.0 x 14.1 mm (X x Y x Z, Z up): blue 43.2 x 21 mm step-down module: five-lead power regulator, shielded inductor, Schottky diode, two 220 uF capacitors, 25-turn trimmer set for 5 V output, IN+ / IN- / OUT+ / OUT- plated holes. Original unbranded model; printed markings and ratings are generic, not a certification. Overall 43 x 21 x 14 mm. Nominal size: 43.20 x 21.00 x 14.10 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: 5-v-buck-converter-module-dc-dc-step-down.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
