3.5 in hard drive
3D model · GLB · 8.3 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

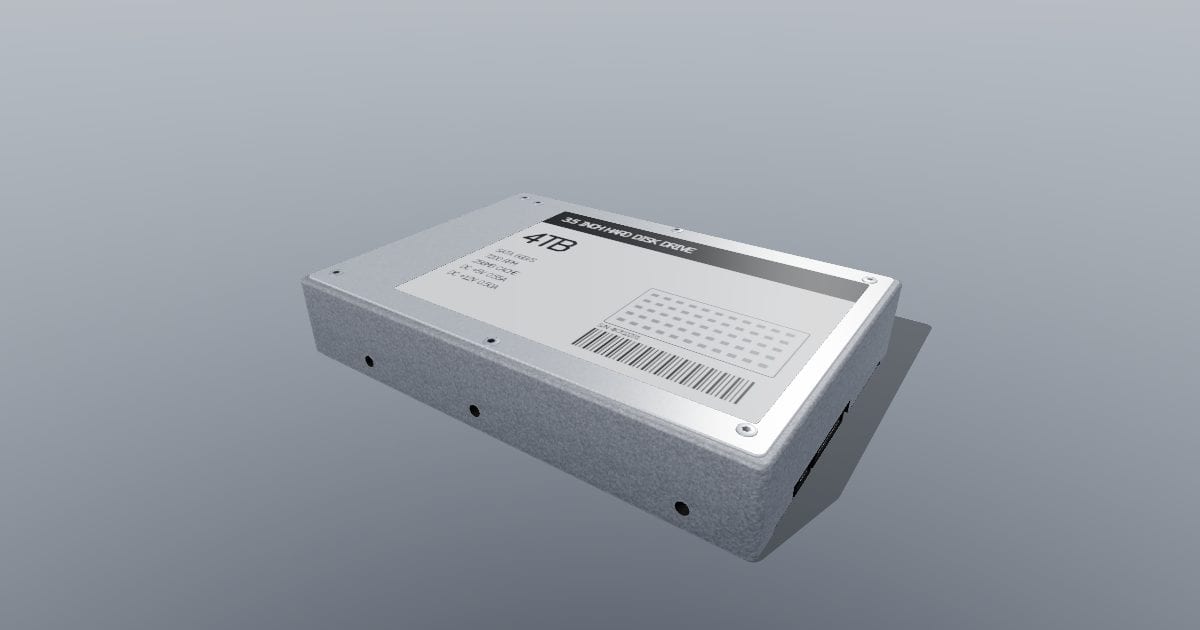

3.5 in hard drive: generic 3.5-inch SATA hard disk drive, 147.0 x 101.6 x 26.1 mm (measured; the 3.5 in drive size), 147.0 x 101.6 x 26.1 mm overall (measured, X x Y x Z). Die-cast aluminium base, stainless steel top cover with seven six-lobe (star) head screws and an original label (4TB), green circuit board underneath, SATA data and power connectors at +X, three 6-32 mounting holes in each side and four underneath. Lies flat, label up. Generic design with no logos or brand names. Overall 147 x 102 x 26 mm. Nominal size: 147.00 x 101.60 x 26.10 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: 3-5-in-hard-drive.glb · added 2026-10-25 · available until 2030-10-25. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
