Split ergonomic keyboard PCB (fab package)
2D drawing · ZIP · 578 KB · by 4itor
Need another format? Open it in the viewer and use Export.
Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0
Source: 4itor/moai on GitHub (CC0 1.0), exported to this format by Innerscene
Description

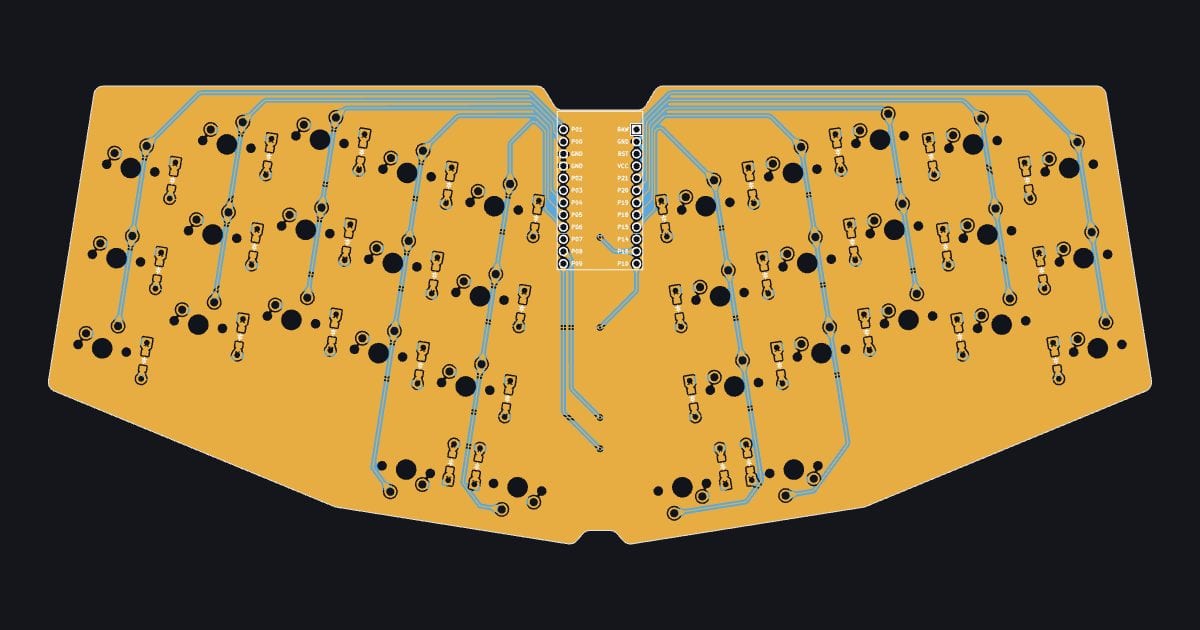

A compact split-layout mechanical keyboard PCB with switch footprints, diodes and a ground pour, as Gerber and Excellon files.
