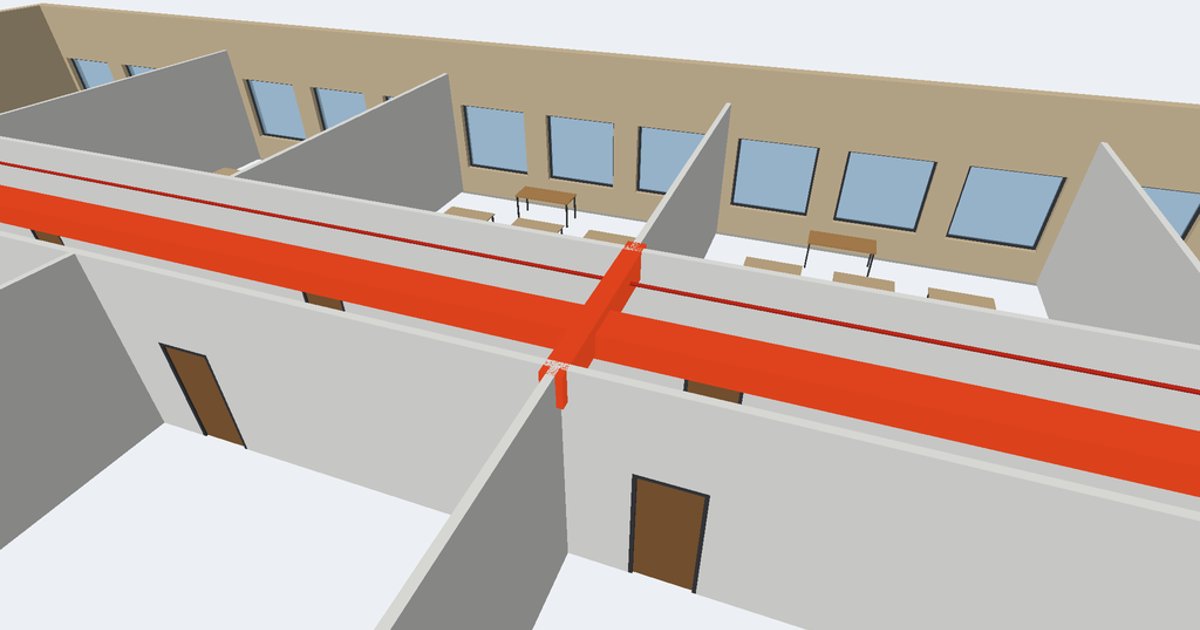

School wing MEP clashes (BCF)
2D drawing · BCF · 300 KB
Need another format? Open it in the viewer and use Export.
Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0
Source: Innerscene
Description
Four coordination topics on the school wing model: duct and pipe clashes with a transfer beam, rooftop unit support and classroom doors, with snapshots and comments.
File: school-wing-mep-clashes.bcf · added 2026-10-24 · available until 2031-10-24. Added from Innerscene under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
