Programmable solar inverter board (fab package)
2D drawing · ZIP · 264 KB · by cpipero
Need another format? Open it in the viewer and use Export.
Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0
Source: cpipero/solarinverter on GitHub (CC0 1.0), exported to this format by Innerscene
Description

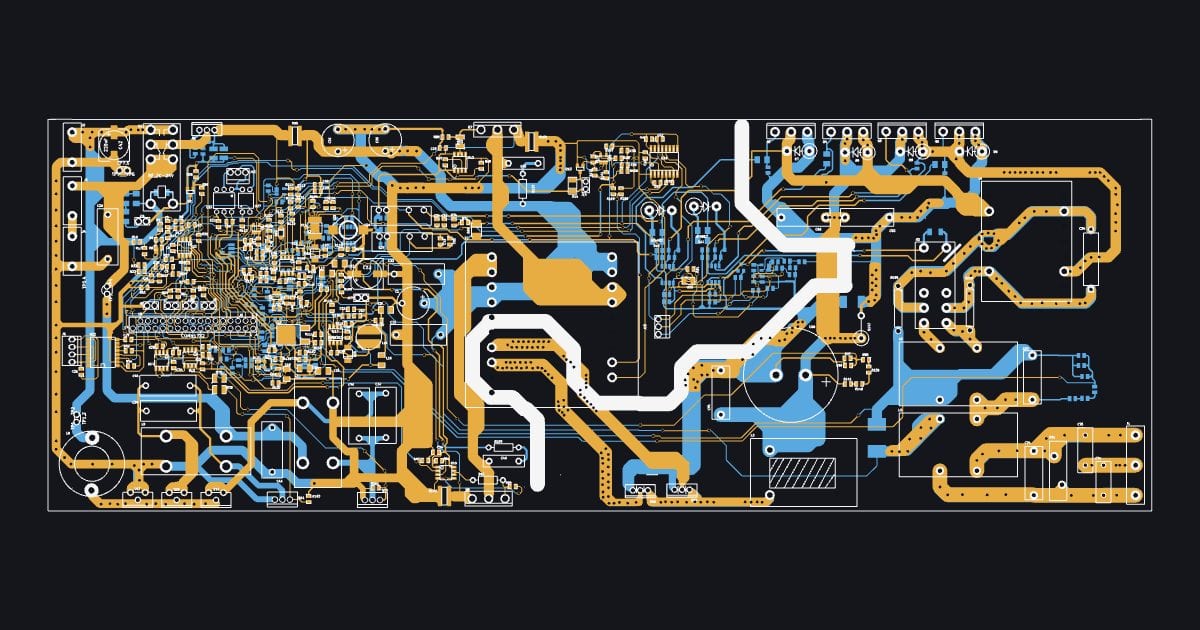

A programmable solar inverter board with a microcontroller section, MOSFET power stage and wide copper power planes, as Gerber and Excellon files.
File: solar-inverter-gerbers.zip · added 2026-10-25 · available until 2031-10-25. Added from cpipero/solarinverter on GitHub (CC0 1.0), exported to this format by Innerscene under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
