EPROM emulator board (fab package)
2D drawing · ZIP · 184 KB · by agkaminski
Need another format? Open it in the viewer and use Export.
Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0
Source: agkaminski/emuprom on GitHub (CC0 1.0), exported to this format by Innerscene
Description

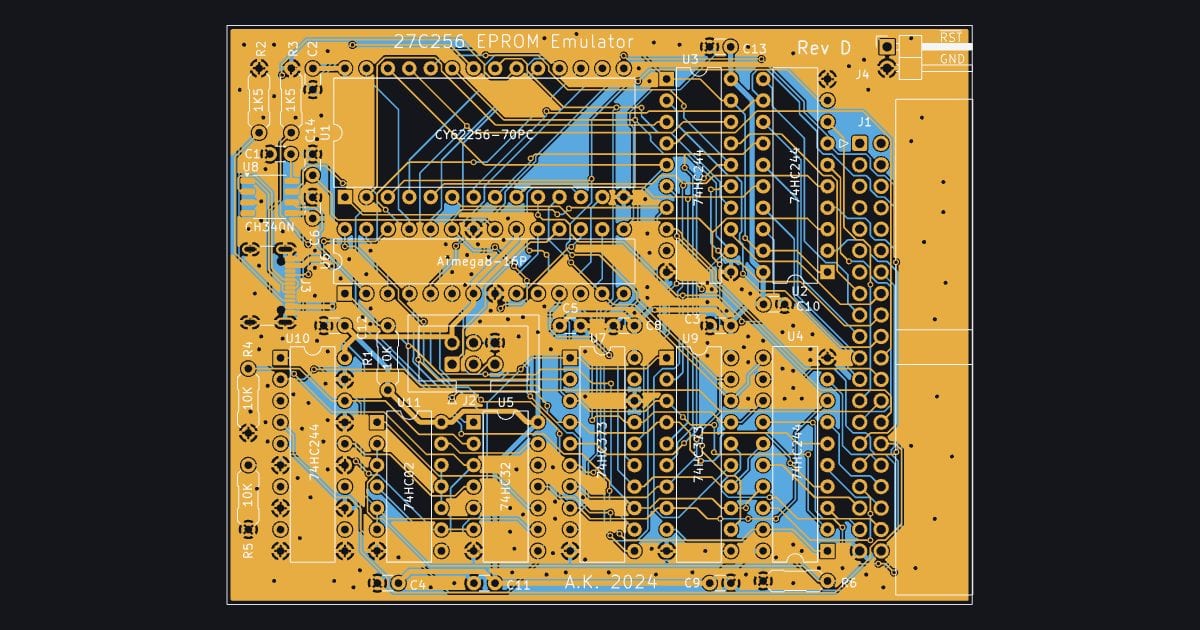

A DIY 27C256 EPROM emulator with a DIP programming header and static RAM, densely routed on two layers, as Gerber and Excellon files.
File: eprom-emulator-gerbers.zip · added 2026-10-25 · available until 2031-10-25. Added from agkaminski/emuprom on GitHub (CC0 1.0), exported to this format by Innerscene under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
