Electronics enclosure flat pattern
2D drawing · DFT · 9 KB
Need another format? Open it in the viewer and use Export.
Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0
Source: Innerscene
Description

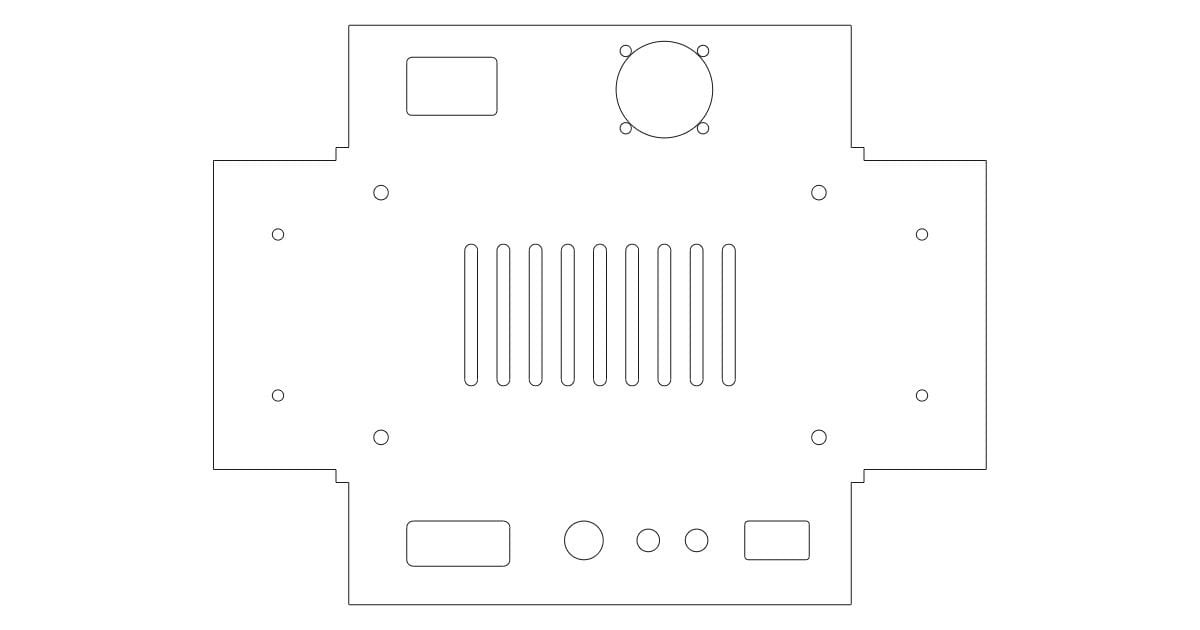

Sheet-metal blank for a 160 x 100 x 40 mm box: base with vent slots and four walls with connector, switch, power-inlet and fan cutouts, with corner bend reliefs.
