Discrete 555 timer board (fab package)
2D drawing · ZIP · 112 KB · by botanicfields
Need another format? Open it in the viewer and use Export.
Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0
Source: botanicfields/BF-017 on GitHub (CC0 1.0), exported to this format by Innerscene
Description

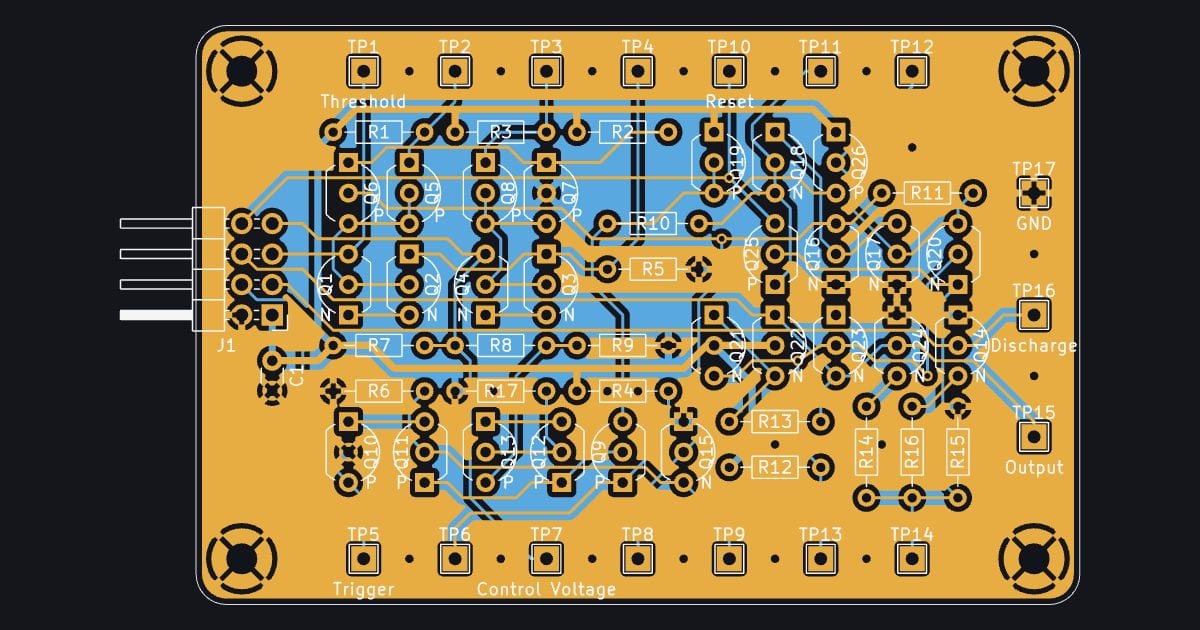

The classic 555 timer IC rebuilt from discrete transistors and resistors on one board, as Gerber and Excellon files.
File: discrete-555-timer-gerbers.zip · added 2026-10-25 · available until 2031-10-25. Added from botanicfields/BF-017 on GitHub (CC0 1.0), exported to this format by Innerscene under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
