DC step-down converter module (fab package)
2D drawing · ZIP · 54 KB · by sporniket
Need another format? Open it in the viewer and use Export.
Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0
Source: sporniket/dop-module-dc-stepdown-xl4005 on GitHub (CC0 1.0), exported to this format by Innerscene
Description

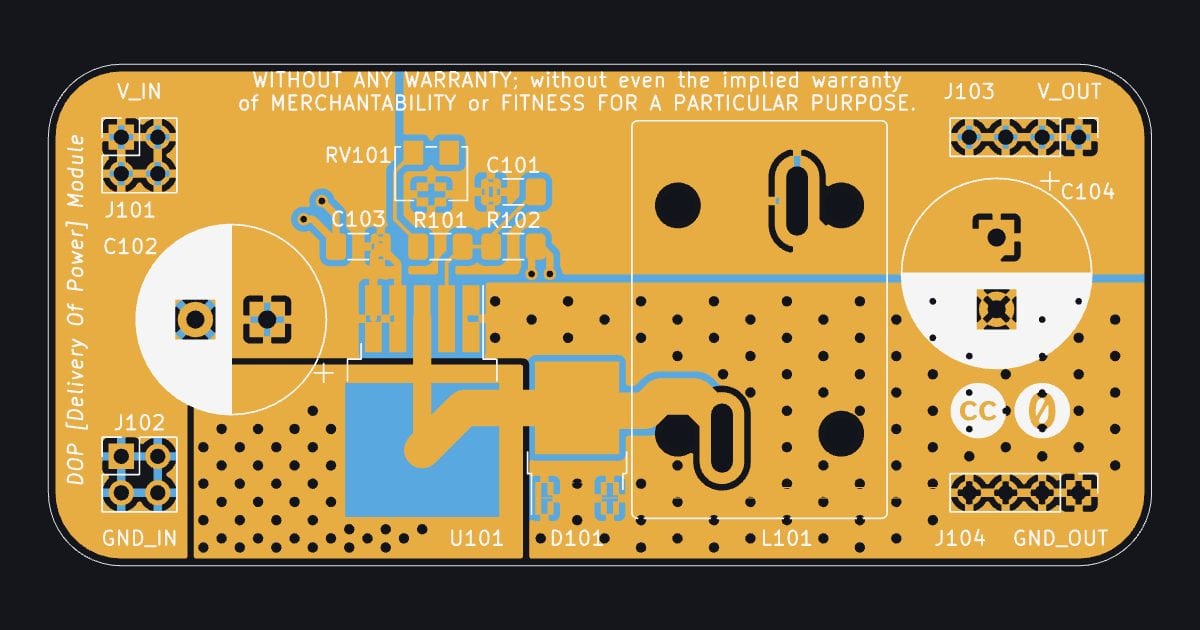

A buck converter module with a power inductor, electrolytic capacitors, input and output pads and a stitched ground pour, as Gerber and Excellon files.
File: dc-stepdown-module-gerbers.zip · added 2026-10-25 · available until 2031-10-25. Added from sporniket/dop-module-dc-stepdown-xl4005 on GitHub (CC0 1.0), exported to this format by Innerscene under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
