Coin cell tester (fab package)
2D drawing · ZIP · 19 KB · by konspyre
Need another format? Open it in the viewer and use Export.
Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0
Source: konspyre/cr2032-tester on GitHub (CC0 1.0), exported to this format by Innerscene
Description

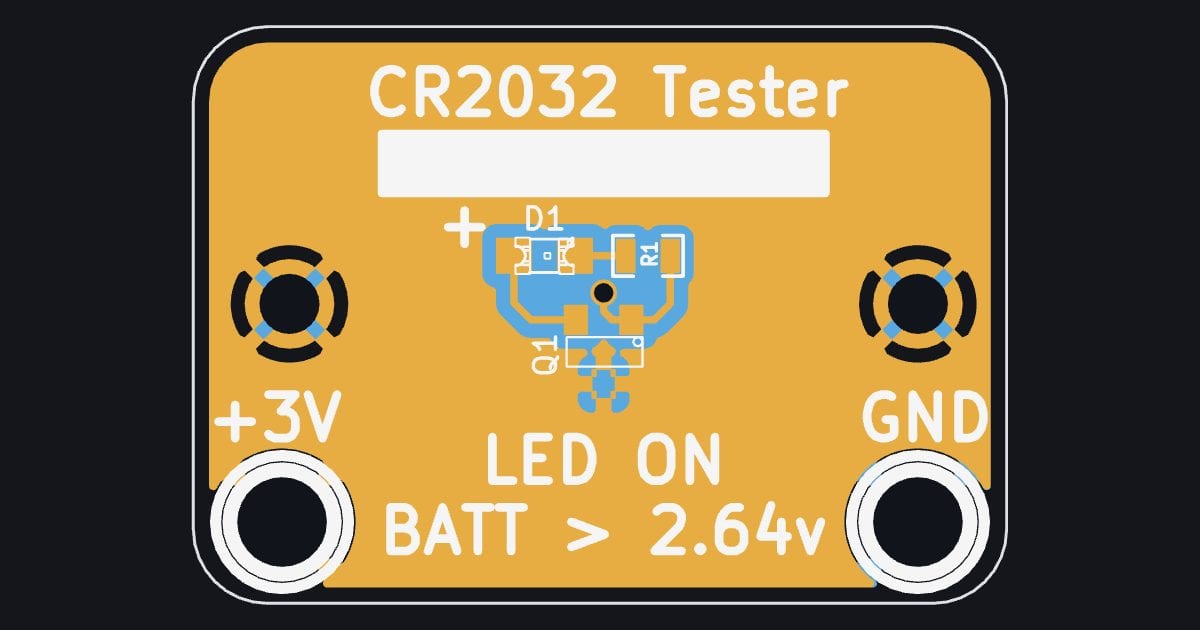

A small board that lights an LED when a 3 V coin cell is above 2.64 V, with large test pads and silkscreen labels, as Gerber and Excellon files.
File: coin-cell-tester-gerbers.zip · added 2026-10-25 · available until 2031-10-25. Added from konspyre/cr2032-tester on GitHub (CC0 1.0), exported to this format by Innerscene under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
