Angle bracket blank with slots
2D drawing · DFT · 3 KB
Need another format? Open it in the viewer and use Export.
Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0
Source: Innerscene
Description

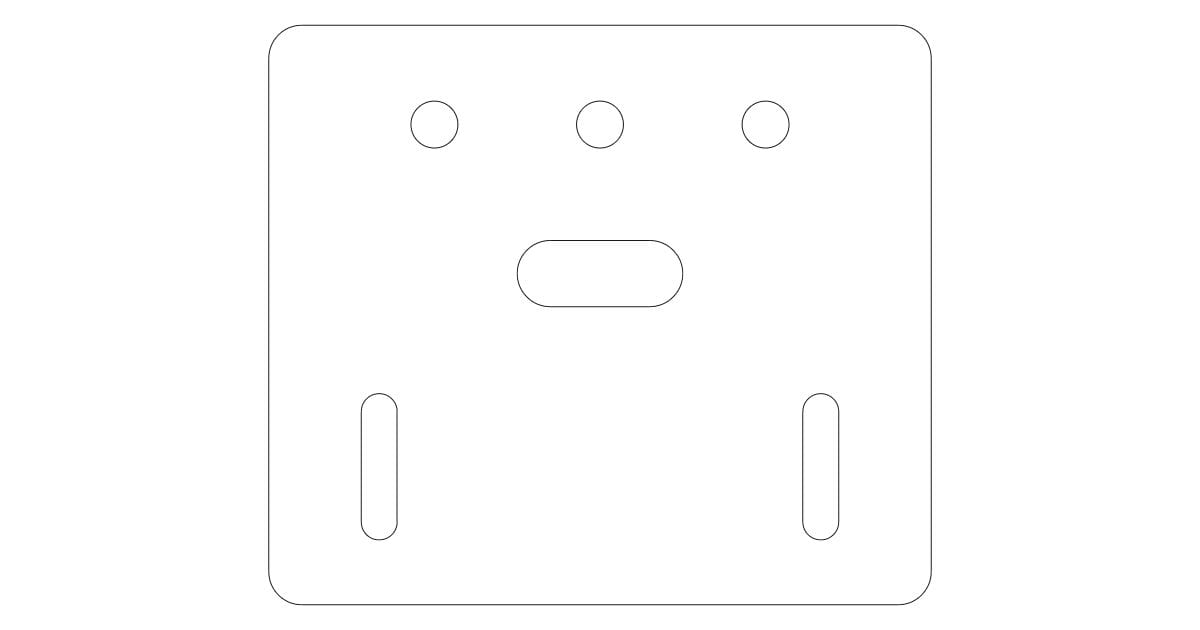

Flat blank for a 120 mm wide angle bracket with two adjustment slots, three mounting holes and a relief window on the bend line.
File: angle-bracket-with-slots.dft · added 2026-10-25 · available until 2031-10-25. Added from Innerscene under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
