8-channel relay board (fab package)
2D drawing · ZIP · 30 KB · by balazsgrill
Need another format? Open it in the viewer and use Export.
Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0
Source: balazsgrill/pcb-relay-board-2 on GitHub (CC0 1.0), exported to this format by Innerscene
Description

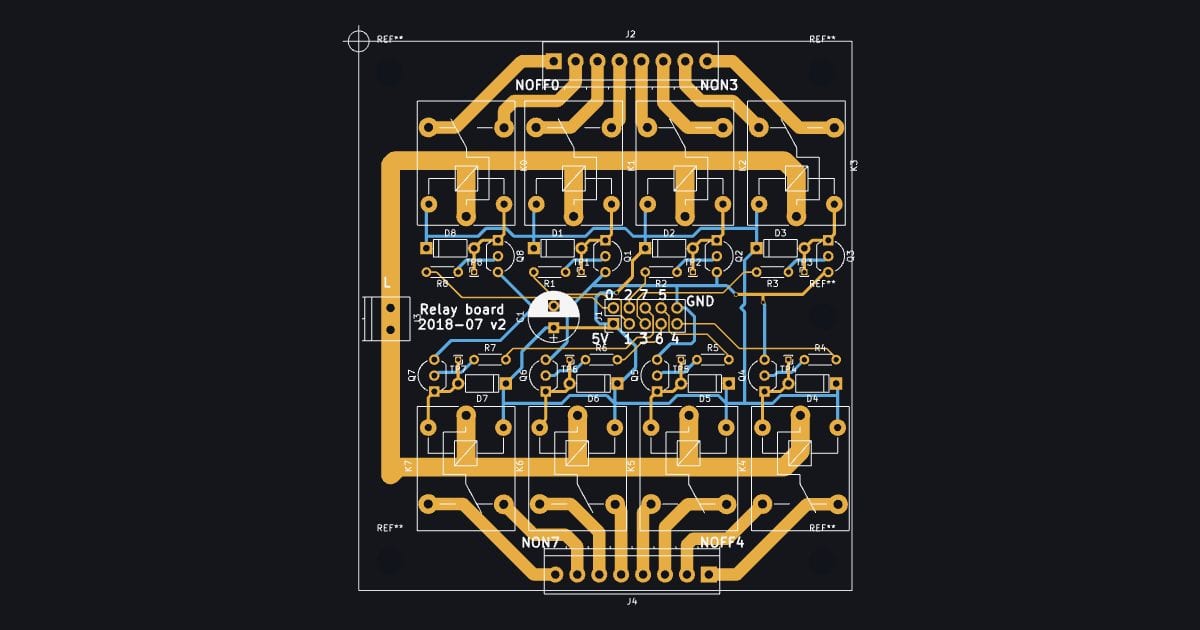

A board for eight 5 V relays with driver transistors, flyback diodes and wide screw-terminal traces, as Gerber and Excellon files.
