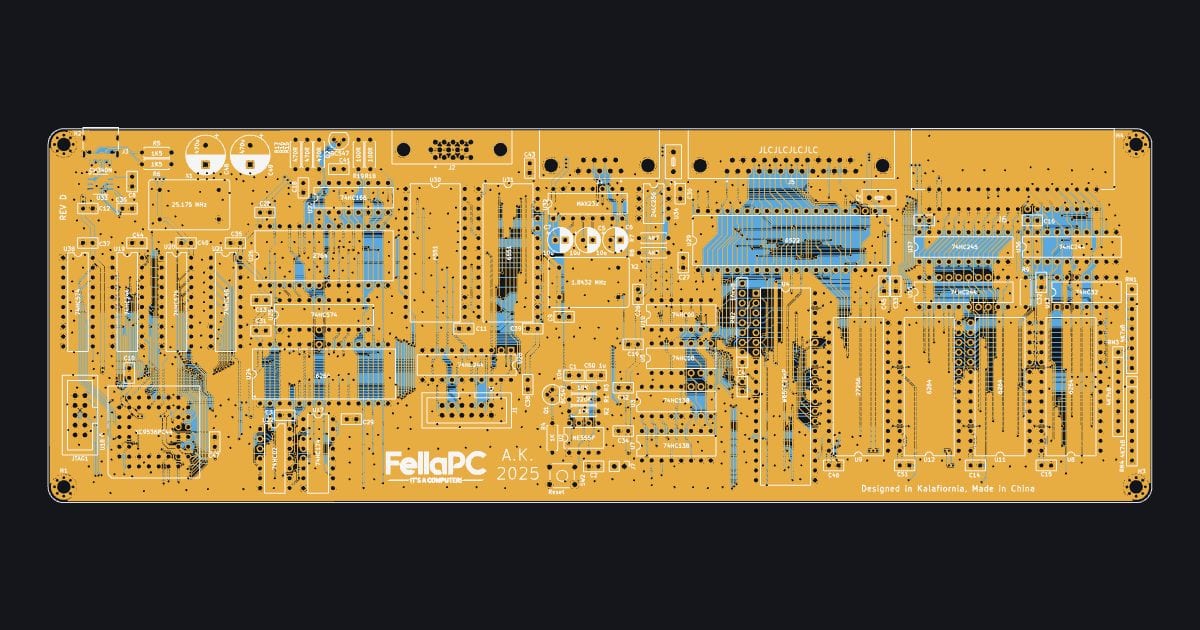

6502 computer main board (fab package)
2D drawing · ZIP · 847 KB · by agkaminski
Need another format? Open it in the viewer and use Export.
Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0
Source: agkaminski/FellaPC on GitHub (CC0 1.0), exported to this format by Innerscene
Description
Main board of a DIY 6502 personal computer built into its keyboard: CPU, memory, logic and keyboard matrix on one long two-layer board, as Gerber and Excellon files.
File: fella-6502-computer-gerbers.zip · added 2026-10-25 · available until 2031-10-25. Added from agkaminski/FellaPC on GitHub (CC0 1.0), exported to this format by Innerscene under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
