60% mechanical keyboard PCB
2D drawing · CAD · 360 KB · by swiftrax
Need another format? Open it in the viewer and use Export.
Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0
Source: swiftrax/Nodu on GitHub (CC0 1.0), exported to this format by Innerscene
Description

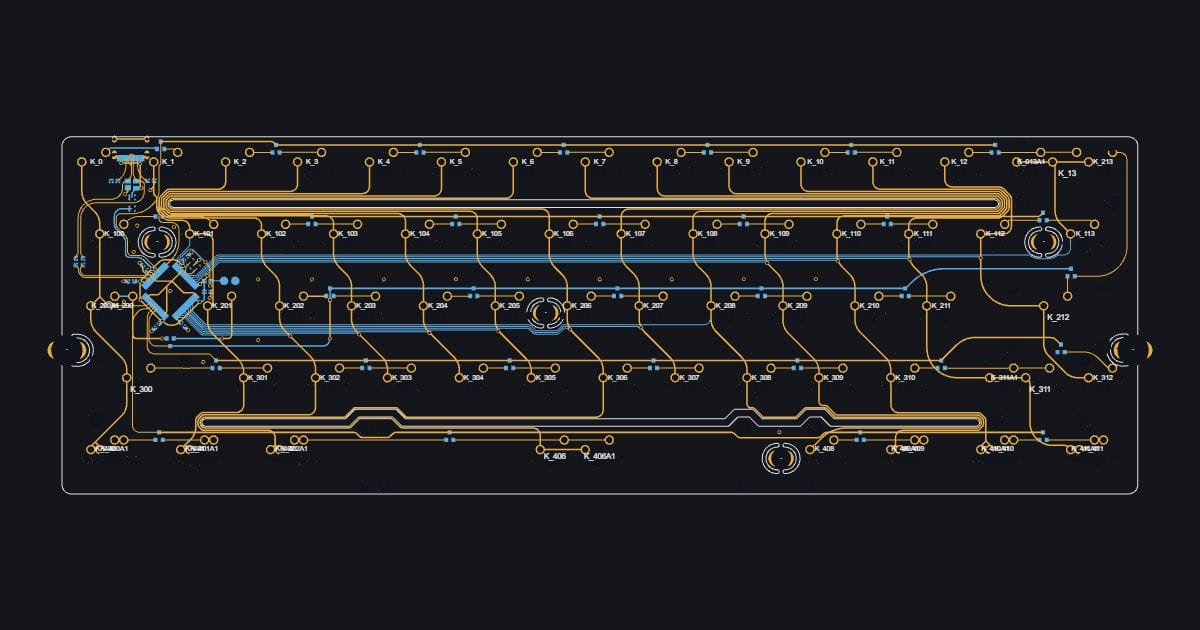

A universal sixty-percent keyboard PCB with flex cutouts, switch and stabiliser footprints and the diode matrix routing. Exported from the published KiCad board.
File: nodu-60-keyboard.cad · added 2026-10-25 · available until 2031-10-25. Added from swiftrax/Nodu on GitHub (CC0 1.0), exported to this format by Innerscene under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
