Through dovetail timber joint, exploded (Collada DAE)Open in 3D

Through dovetail timber joint, exploded (Collada DAE)

3D model · DAE · 46 KB

Open in 3D viewerDownload DAE

Need another format? Open it in the viewer and use Export.

Public domain (CC0). Free to use, modify and redistribute for any purpose, including commercially, with no credit required. About CC0

Source: Innerscene - original model

Description

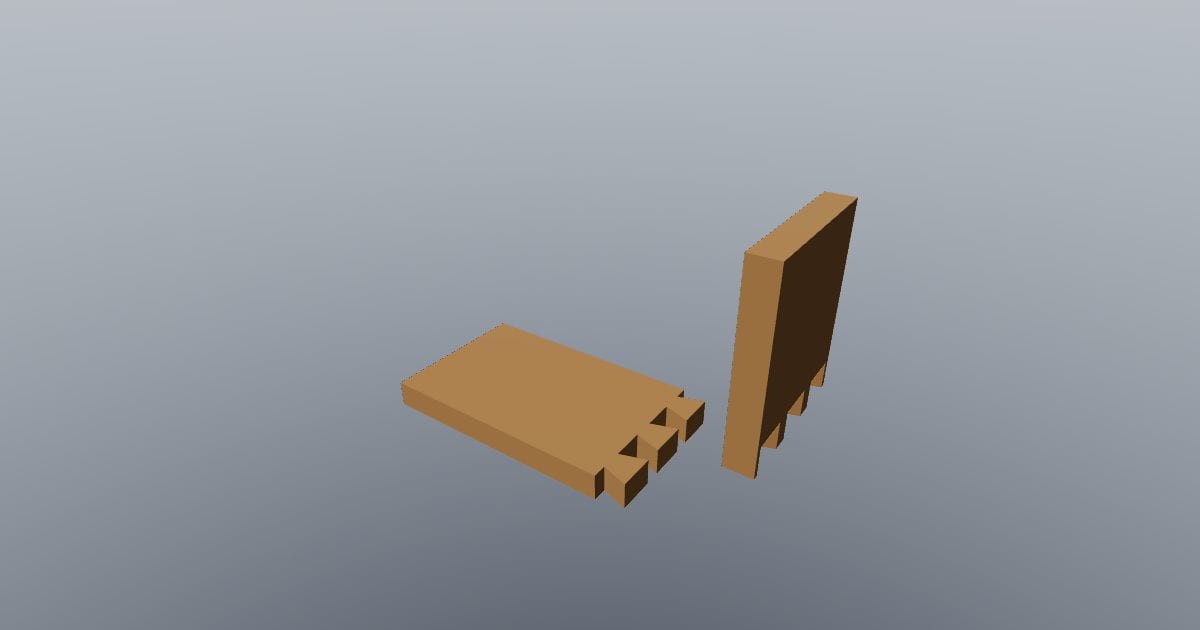

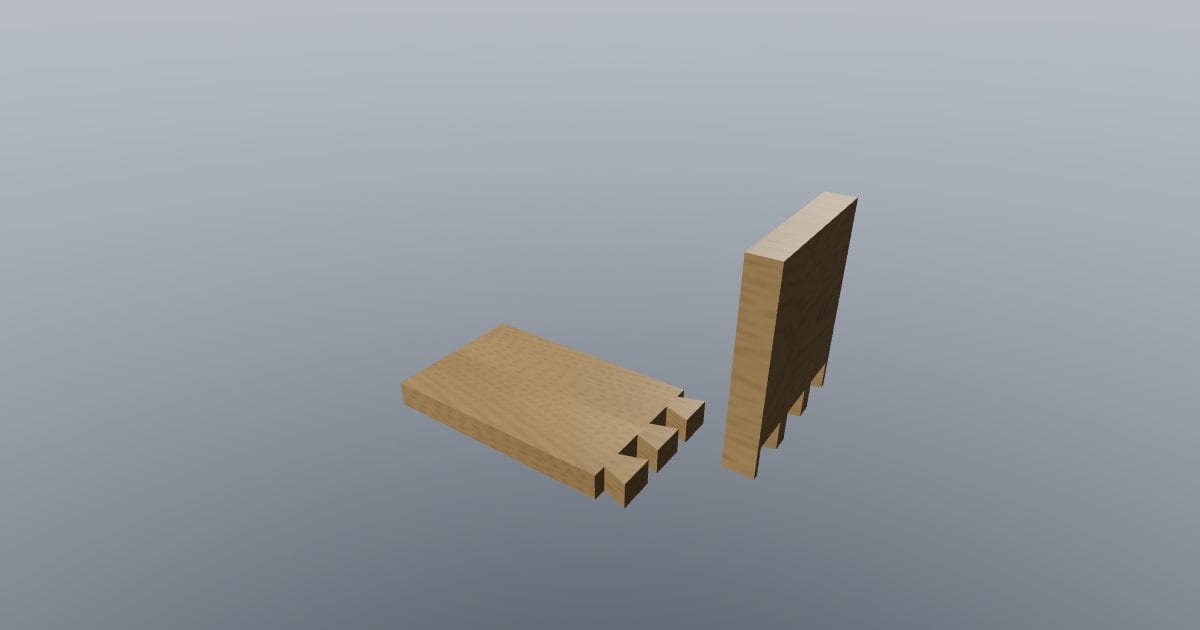

Through dovetail timber joint, exploded. Overall size 0.334 x 0.165 x 0.220 m; original unbranded model. Overall 334 x 165 x 220 mm. The same original model as "Through dovetail timber joint, exploded", exported to Collada DAE with its materials where the format carries them; useful as a sample file for that format. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

Tools & jigsReal-world scaleTextured / materialscarpentryjoinerymarcenariawoodworkingdovetailmortisetenonwood jointfinger jointlap jointoriginalcc0

File: through-dovetail-timber-joint-exploded.dae · added 2026-10-07 · available until 2031-10-07. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
