Stacking banquet chair (steel frame, upholstered)
3D model · GLB · 2.5 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

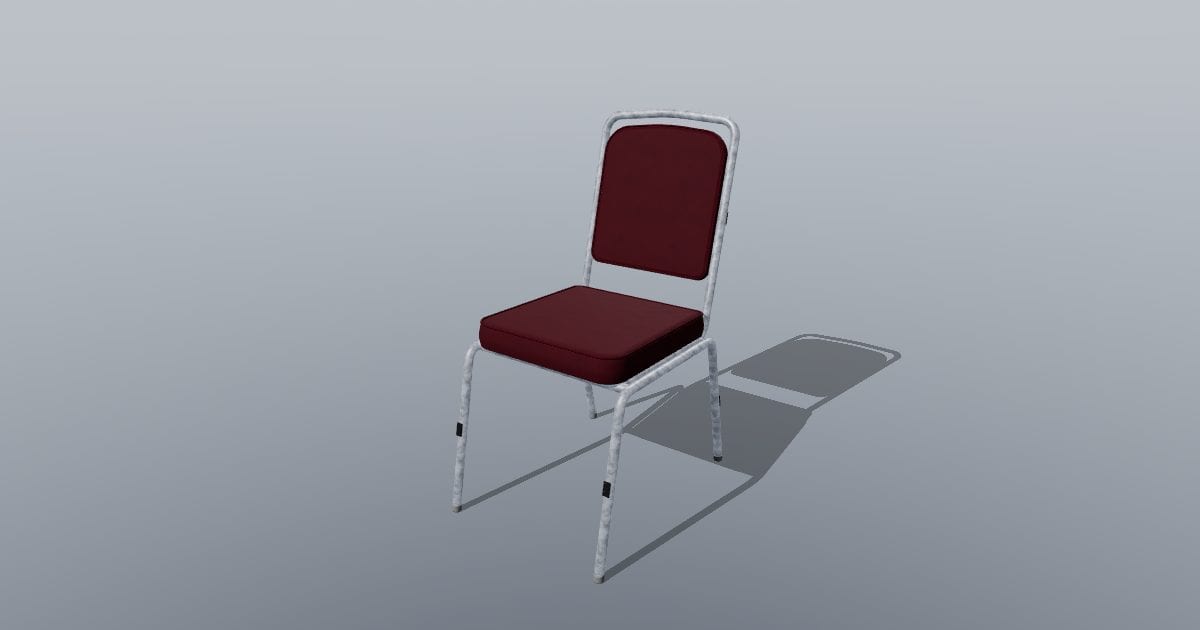

Stacking banquet chair (steel frame, upholstered). Overall 452 x 645 x 929 mm (X width x Y depth x Z height): stacking banquet chair in the traditional construction: two inverted-U leg frames of 22 mm steel tube (front legs raked 11.5 degrees forward, rear legs 13 degrees back) outside the seat, an inboard L-shaped back frame (seat arms, back posts raked 14 degrees, arched top rail) and front and rear seat rails, all in a silver vein powder coat; wine-red diamond-weave upholstered seat (12 mm board, 50 mm foam, welt piping, black dust cover) and back pad between the posts on welded tabs; black stacking bumpers and nylon glides. The leg frames of an upper chair pass outside the back posts of the chair below, so the chairs nest at about 127 mm per chair (interference-tested). Original unbranded model. Overall 452 x 645 x 929 mm. Nominal size: 452.40 x 644.66 x 928.81 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: stacking-banquet-chair-steel-frame-upholstered.glb · added 2026-10-23 · available until 2031-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
