NIST test part FTC 09 (SAT)
3D model · SAT · 191 KB · by NIST MBE PMI geometry, written to this format by Innerscene
Need another format? Open it in the viewer and use Export.
Public domain (US Government work). A work of the US federal government, in the public domain in the United States (17 U.S.C. §105). Free to use, modify and redistribute; rights outside the US may differ. About government works
Source: NIST MBE PMI CAD models
Description

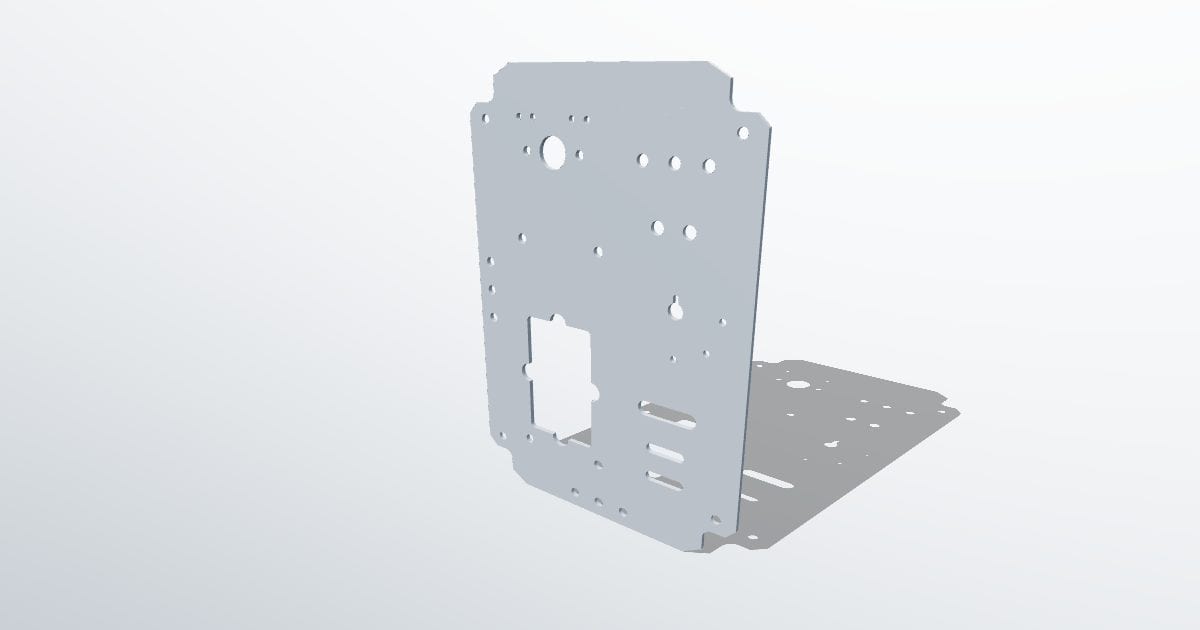

NIST fully toleranced test case 09: a thin profiled plate with cut-outs and holes. Geometry from the NIST AP203 STEP file, written as an ACIS SAT solid.
File: nist-ftc-09.sat · added 2026-10-25 · available until 2031-10-25. Added from NIST MBE PMI CAD models under its public-domain status; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
