NIST test part FTC 07 (SAT)
3D model · SAT · 329 KB · by NIST MBE PMI geometry, written to this format by Innerscene
Need another format? Open it in the viewer and use Export.
Public domain (US Government work). A work of the US federal government, in the public domain in the United States (17 U.S.C. §105). Free to use, modify and redistribute; rights outside the US may differ. About government works
Source: NIST MBE PMI CAD models
Description

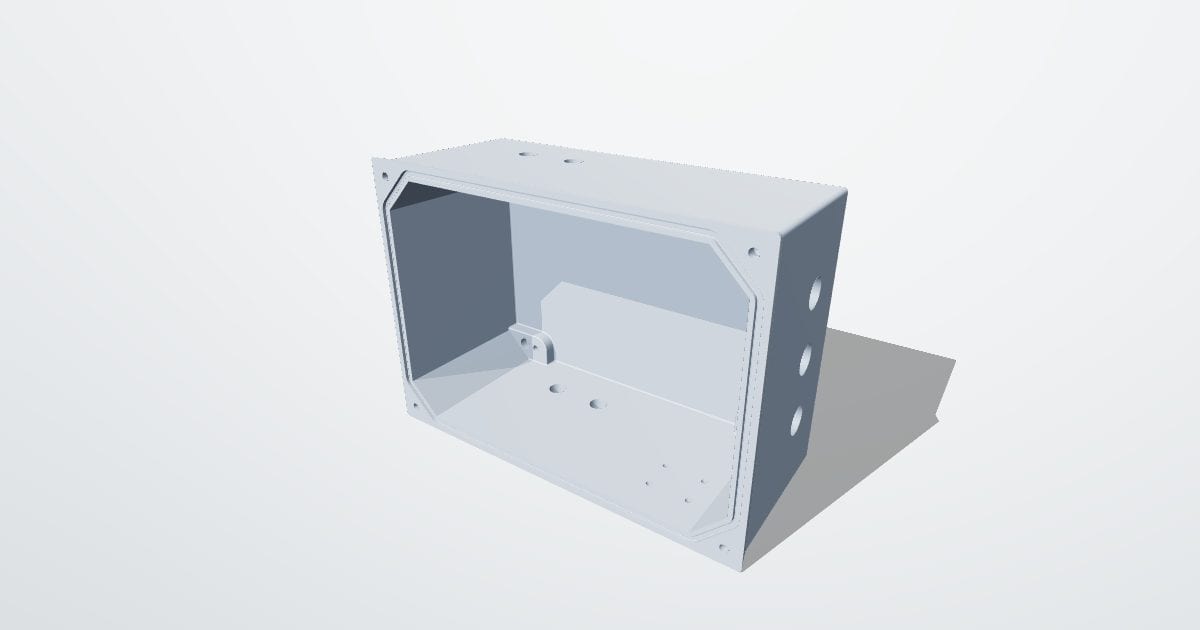

NIST fully toleranced test case 07: a thin-walled open box frame with stiffening ribs and hole patterns. Geometry from the NIST AP203 STEP file, written as an ACIS SAT solid.
