NIST test part CTC 03 (JT)
3D model · JT · 31 KB · by National Institute of Standards and Technology
Need another format? Open it in the viewer and use Export.
Public domain (US Government work). A work of the US federal government, in the public domain in the United States (17 U.S.C. §105). Free to use, modify and redistribute; rights outside the US may differ. About government works
Source: NIST MBE PMI CAD models
Description

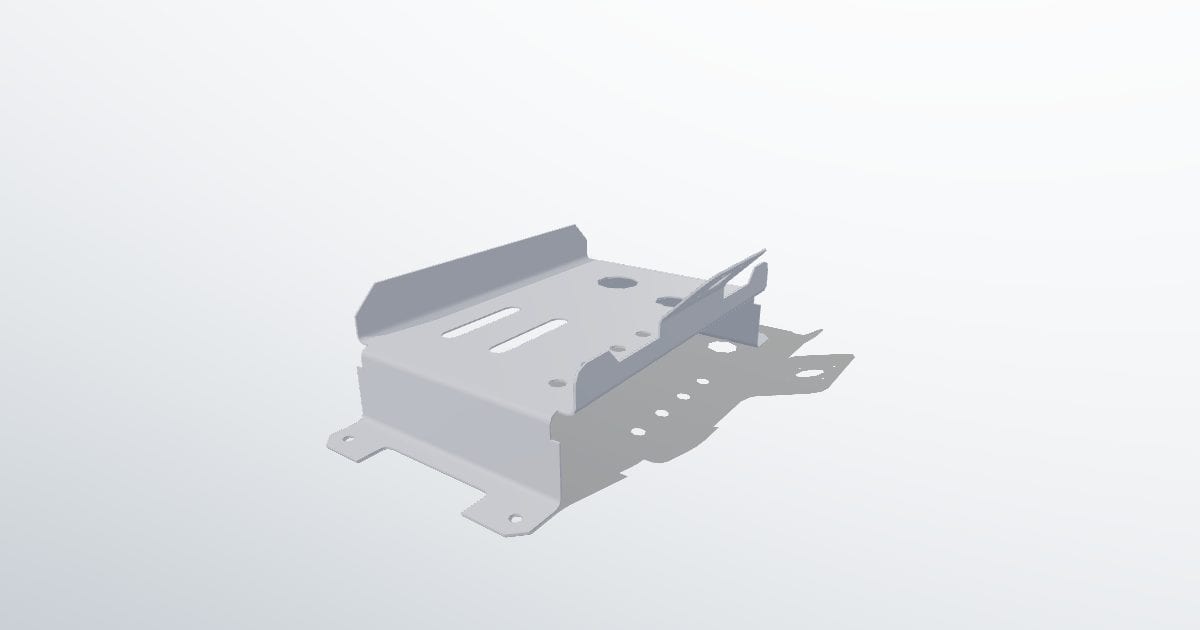

A bent bracket with flanges, slots and hole patterns from the NIST combined test cases. JT display file Siemens NX saved inside the NIST NX part, extracted unmodified.
File: nist-ctc-03-part.jt · added 2026-10-24 · available until 2031-10-24. Added from NIST MBE PMI CAD models under its public-domain status; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
