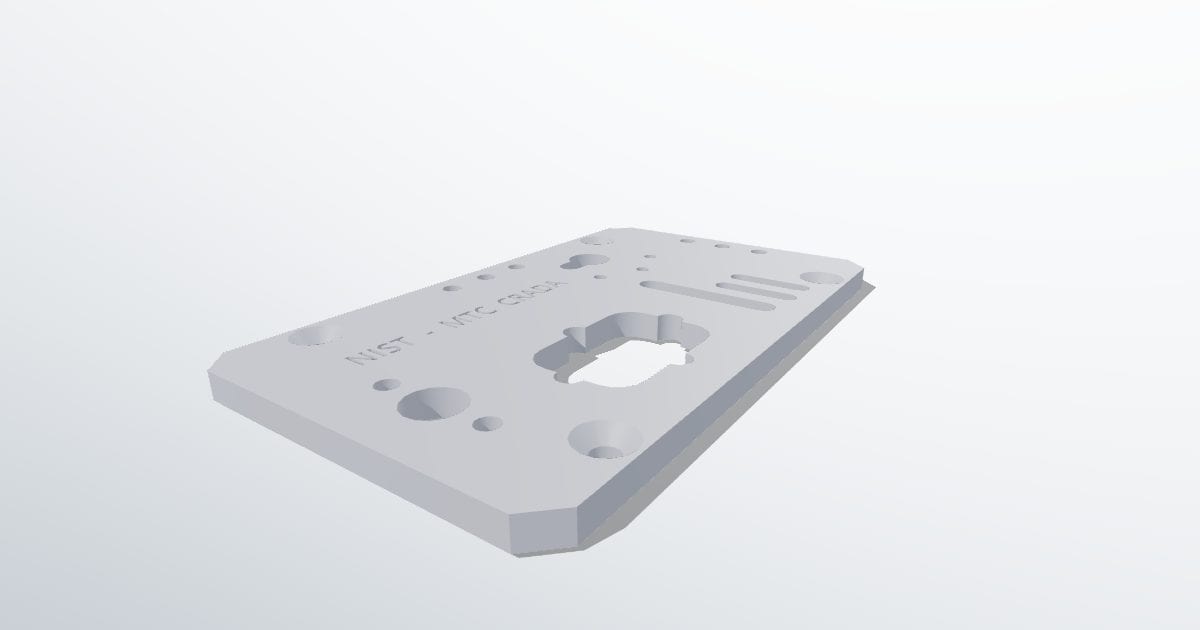

NIST MTC mounting plate (JT)
3D model · JT · 52 KB · by National Institute of Standards and Technology
Need another format? Open it in the viewer and use Export.
Public domain (US Government work). A work of the US federal government, in the public domain in the United States (17 U.S.C. §105). Free to use, modify and redistribute; rights outside the US may differ. About government works
Source: NIST MBE PMI CAD models
Description
The mounting plate of the NIST manufacturing test case box, with slots and hole patterns. JT display file Siemens NX saved inside the NIST NX part, extracted unmodified.
File: nist-mtc-plate.jt · added 2026-10-24 · available until 2031-10-24. Added from NIST MBE PMI CAD models under its public-domain status; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
