Home multigym with 90 kg weight stack (press arms, lat pulldown, leg developer)
3D model · GLB · 6.3 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description

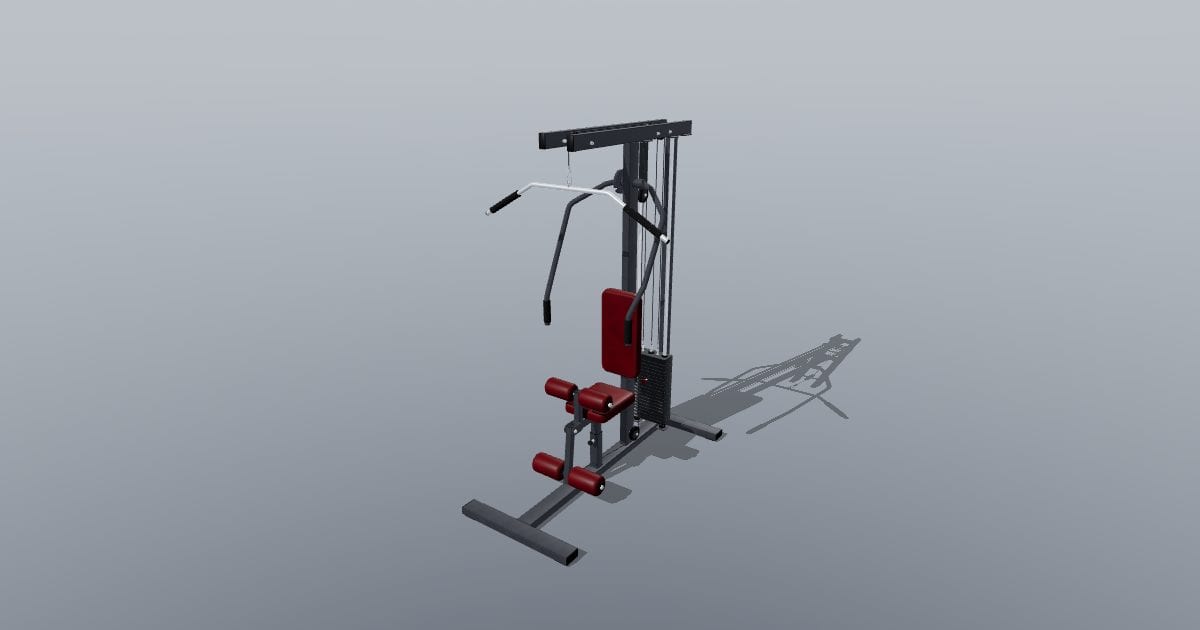

Home multigym with 90 kg weight stack (press arms, lat pulldown, leg developer). Overall 1220 x 1705 x 2151 mm (X width x Y depth x Z height): home multigym (multi-station home gym) in graphite powder-coated steel: base frame on rubber feet, main column, rear upright and twin top rails with welded joints and black end caps; a 90 kg weight stack of eighteen 5 kg plates with number decals on two chrome guide rods, head plate with nylon bushings and three cable eyes, selector rod and red pull pin; three steel cable runs over black nylon pulleys: lat pulldown (two top pulleys to the lat bar on a snap hook), leg developer / low pulley (three pulleys down the column and under the seat to the leg lever) and converging press arms (a cam on the press arm shaft, a drop pulley, down to the head plate); seat on a telescoping post with pop pin; red vinyl seat, backrest, thigh and shin roller pads. Original unbranded model. Overall 1.2 x 1.7 x 2.2 m. Nominal size: 1219.65 x 1705.20 x 2150.70 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: home-multigym-with-90-kg-weight-stack-press-arms-lat-pulldow.glb · added 2026-10-23 · available until 2030-10-23. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
