Canyon wall

Description

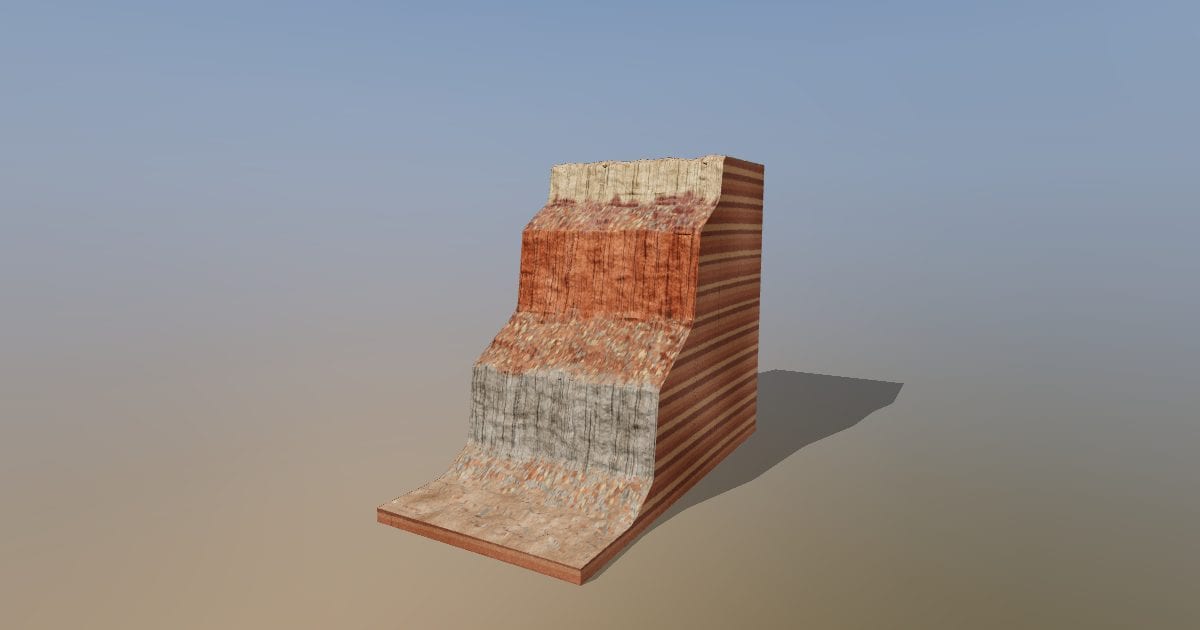

Canyon wall: a stepped canyon wall on a 24 x 48 m footprint, 24.00 x 48.00 x 37.93 m overall (measured, X x Y x Z). From the foot (Z = 0 along the south edge) to the rim plateau (Z = +36.00 m along the north edge; largest measured deviations under 1 mm) the measured edge section has three near-vertical cliff bands (3.0-11.6 m, 17.9-27.2 m, 31.6-35.4 m) separated by weathered slopes of about 32 degrees: the ledge-and-slope profile of canyon walls cut through alternating resistant and weak beds, scaled down. Painted formations: grey-buff limestone, red shale, red sandstone, purple mudstone and a pale sandstone rim, with desert-varnish streaks, scree and sparse shrubs. The east and west edges carry the same section (measured difference 0.0 mm), so walls chain along X; rock base to -1.50 m. Original unbranded model. Overall 24 x 48 x 37.9 m. Nominal size: 24000.00 x 48000.00 x 37932.37 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.

File: canyon-wall.glb · added 2026-10-24 · available until 2030-10-24. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
