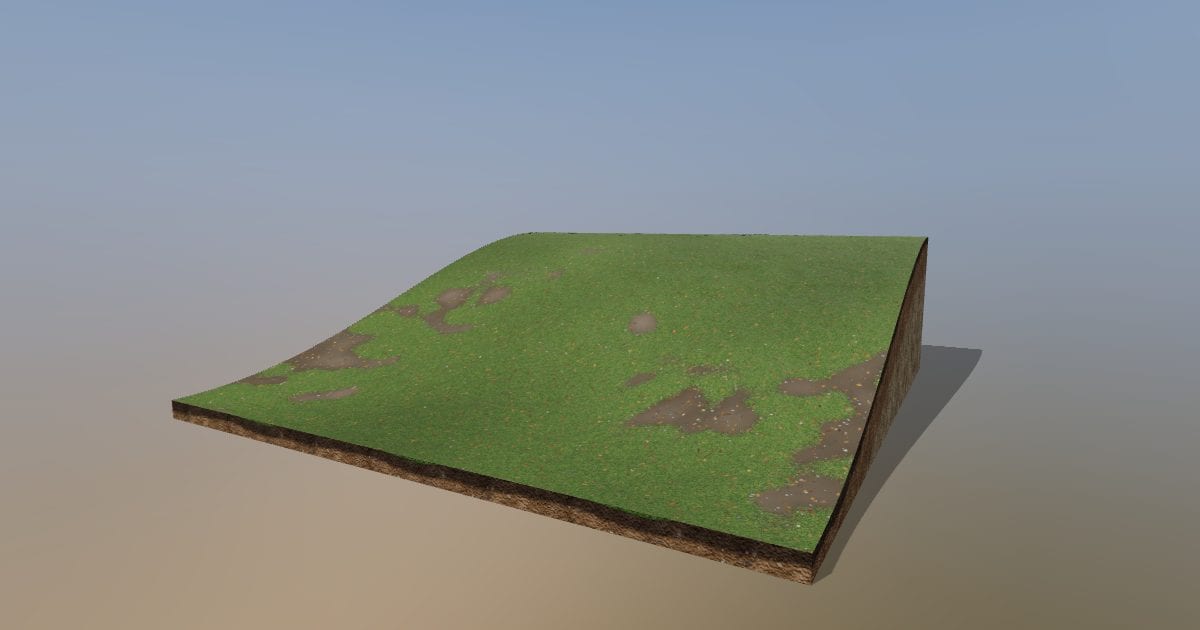

10 m square sloped terrain tile
3D model · GLB · 8.3 MB
Need another format? Open it in the viewer and use Export.
Source: Innerscene - original model
Description
10 m square sloped terrain tile: a sloped terrain tile on a 10 x 10 m footprint (10 m grid), 10.00 x 10.00 x 2.83 m overall (measured, X x Y x Z). The ground rises from the south edge at Z = 0 to the north edge at Z = +2.50 m (largest measured deviations under 1 mm) along z = 2.5 s^2 (3 - 2 s), s = (y + 5) / 10, which both side edges follow (measured deviation 0.00 mm): level at both ends, so it meets flat tiles at Z = 0 and flat tiles raised 2.50 m without a crease, and sloped tiles chain side by side; the mean section (averaged across the tile and over 1 m along the slope) is steepest at mid-slope, about 20.7 degrees (design gradient 0.375). Same painted ground texture as the flat tile; soil base to -0.30 m. Original unbranded model. Overall 10 x 10 x 2.8 m. Nominal size: 10000.00 x 10000.00 x 2828.83 mm overall. glTF binary (GLB) mesh with materials, modeled in meters at real-world scale. Export to other formats from the viewer. Nominal dimensions for layout, fit checks and visualization; they do not establish a manufacturing tolerance class, load rating or standards certification. Original Innerscene model, released CC0.
File: 10-m-square-sloped-terrain-tile.glb · added 2026-10-24 · available until 2030-10-24. Added from Innerscene - original model under its CC0 dedication; see the library terms. Think this part infringes someone’s rights? Use Report on the viewer page or see our copyright policy.
