Power: 10+ year battery life
Range: 100ft with clear line of sight
Operating Hours: Dawn to dusk (auto night suspend)
Communication: 2.4 GHz ISM band protocol (no router required)
SkySyncTM
Overview - Specifications
Date
Project
Specifier
Type
Description

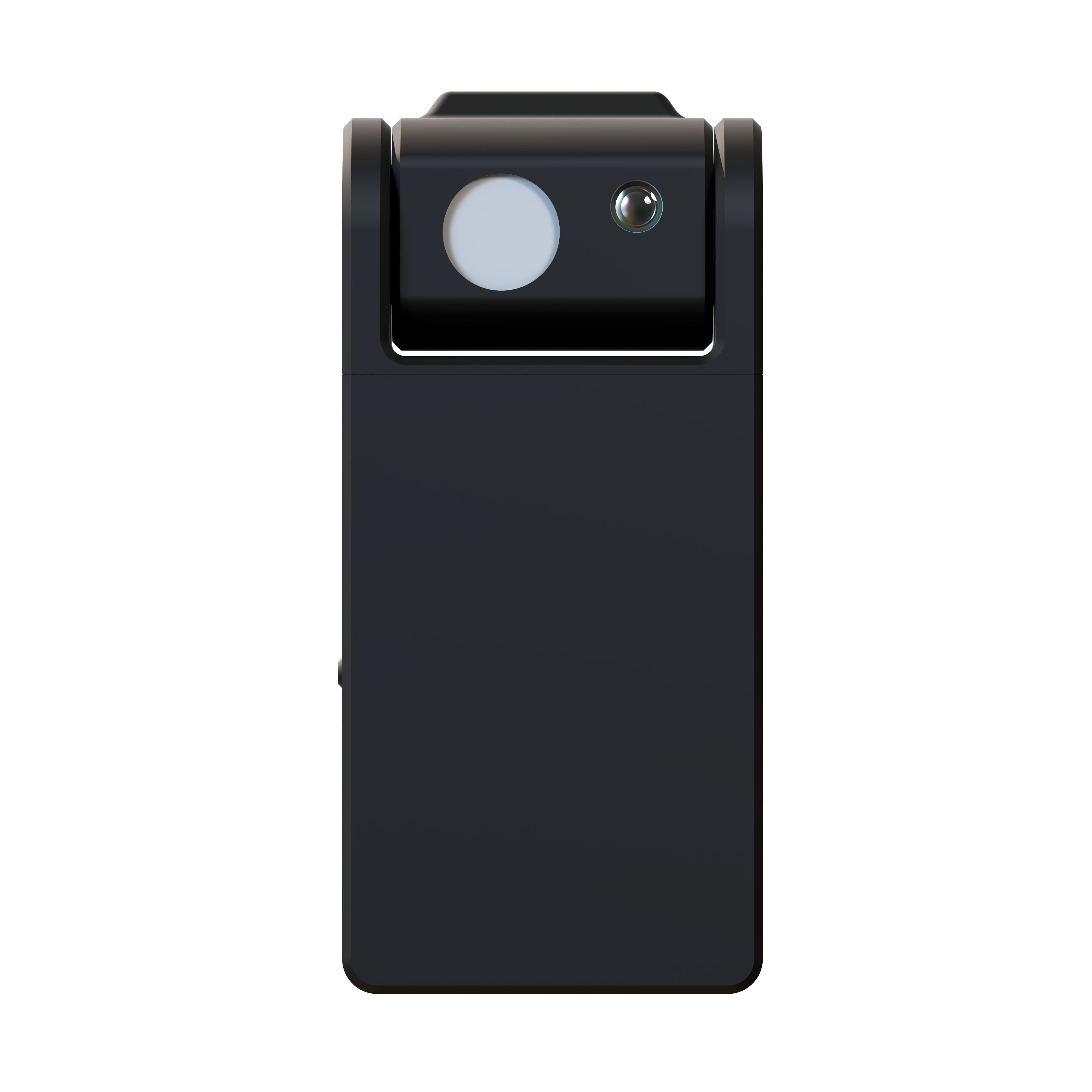

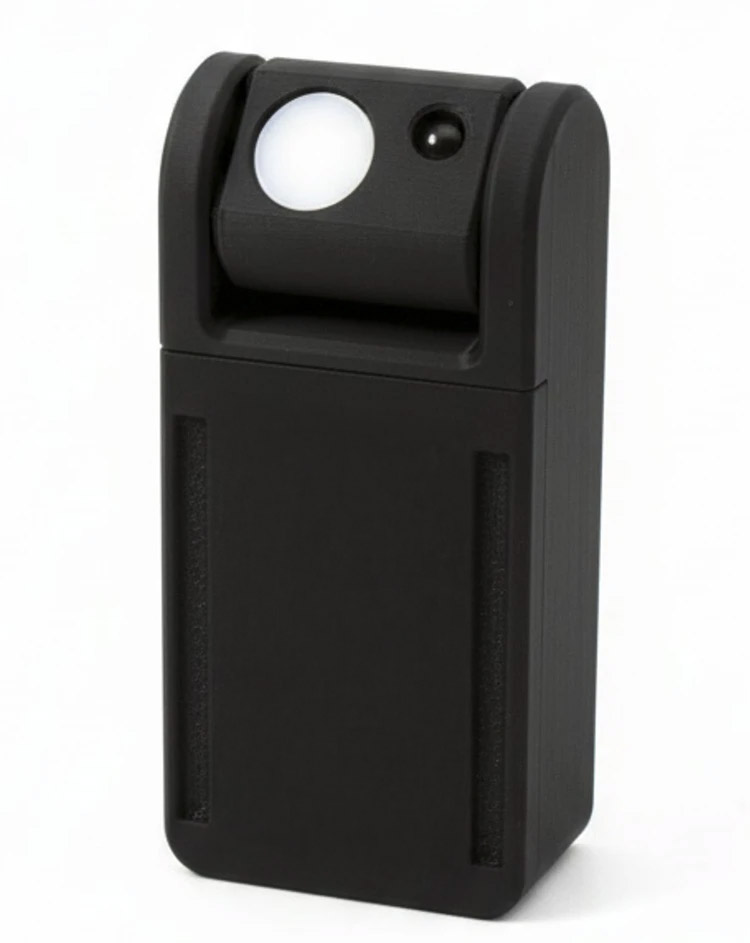

Innerscene SkySync is a window‑mounted light sensing unit that captures the natural sky and delivers it indoors. It measures CIE 1931 color with 1 SCDM accuracy, enabling precise detection of any color or CCT the eye can see.
The device continuously measures sky color and ambient color temperature, streaming real‑time data to Innerscene fixtures for faithful interior replication.

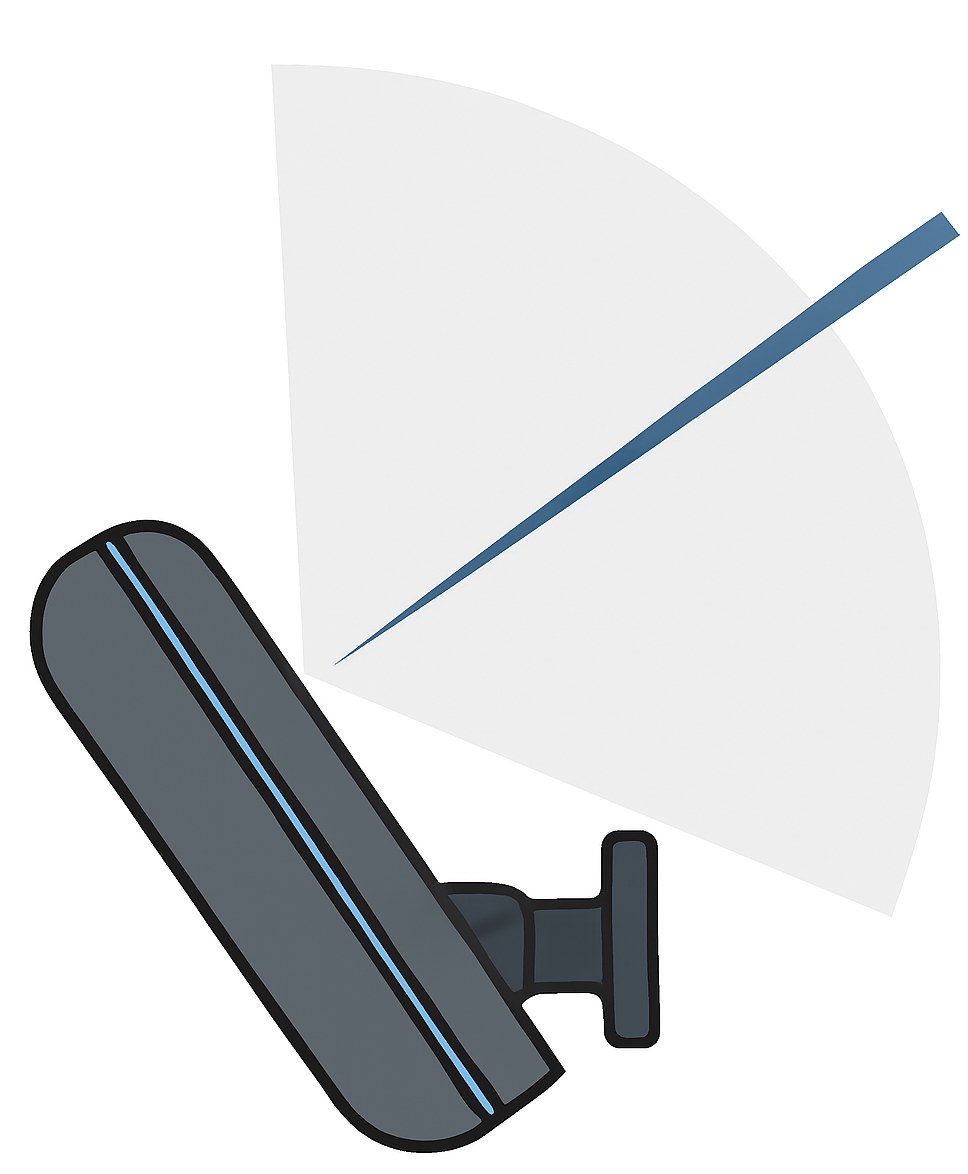

Sensing: A dual‑sensor design combines a 10° sky sampling cone with a 180° diffuse ambient collector for precise, stable results. Features 10+ year battery life with no external power required.
Wireless Operation

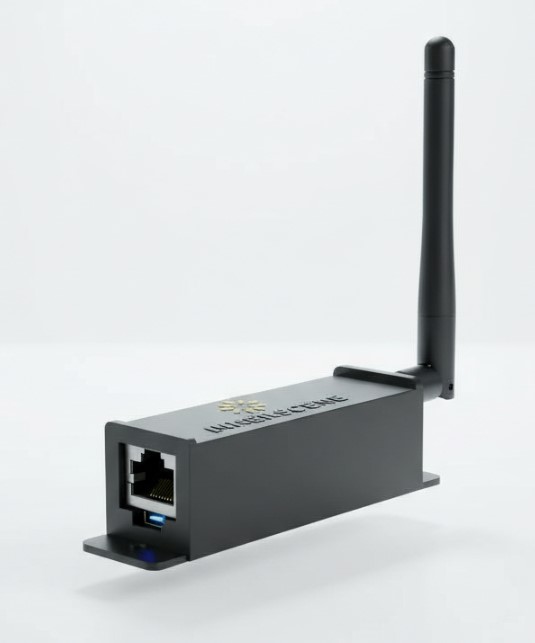

Innerscene Mini Hub (Optional)
For extended range or network-based deployments, the Innerscene Mini Hub receives SkySync data and broadcasts it to Innerscene fixtures over the local network or via Innerscene Cloud Services for remote buildings. Learn more →
Power Options
PoE: IEEE 802.3af
USB-C: 5V DC
Local Network
Ethernet: DHCP
WiFi: Web UI config
Output Modes
Local: UDP broadcast
Cloud: TCP services
Device Specifications
| Sky Sensor FOV: | 10° narrow field of view |
| Ambient Sensor: | 180° diffuse light collector |
| Wireless Range: | 100ft with clear line of sight |
| Power: | 10+ year battery life |
| Setup Protocol: | Bluetooth Low Energy (BLE) |
| Safety: | Complies with UL 916, Battery UL 1642 |
| Color Accuracy: | 1 SCDM |
| IP Rating: | IP20 (indoor use only) |
| Compatible with: | Innerscene Circadian Sky Innerscene Virtual Sun |
| Installation: | Removable tape mounting to interior windows |

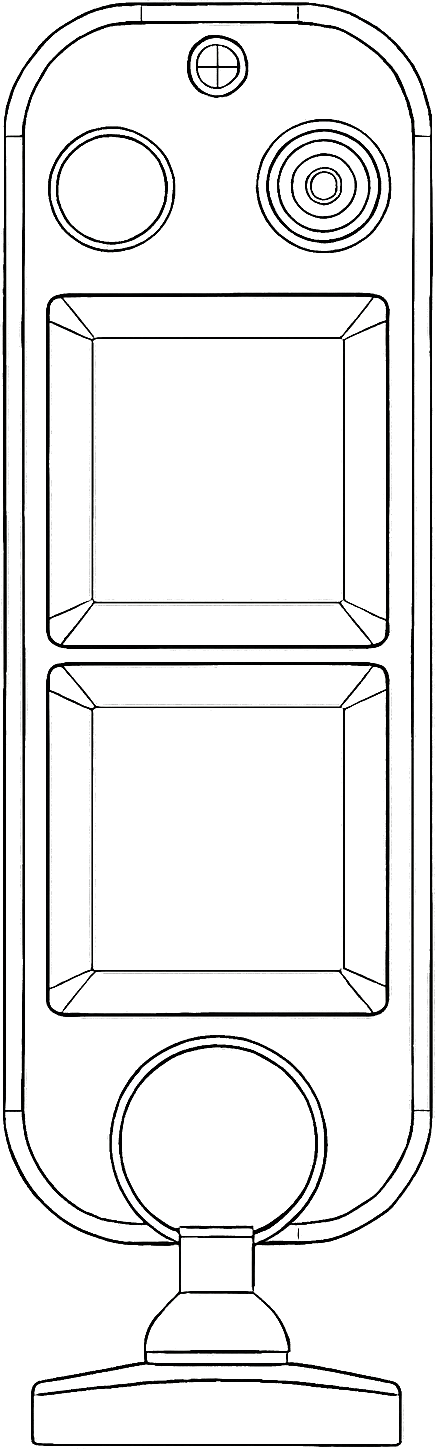

Dimensions
* Final dimensions subject to change
Dual-Mode Control System
Schedule Mode: Fixtures follow real-time SkySync data to replicate exterior lighting conditions.
Dimmer Override Mode: External dimming control overrides schedule programming.
Auto-Switching: Fixtures automatically detect external control signals and return to schedule mode when dimming is idle, power cycle occurs, or via app control.
