Virtual Skylight for Wellness & Productivity

Date

Project

Specifier

Type

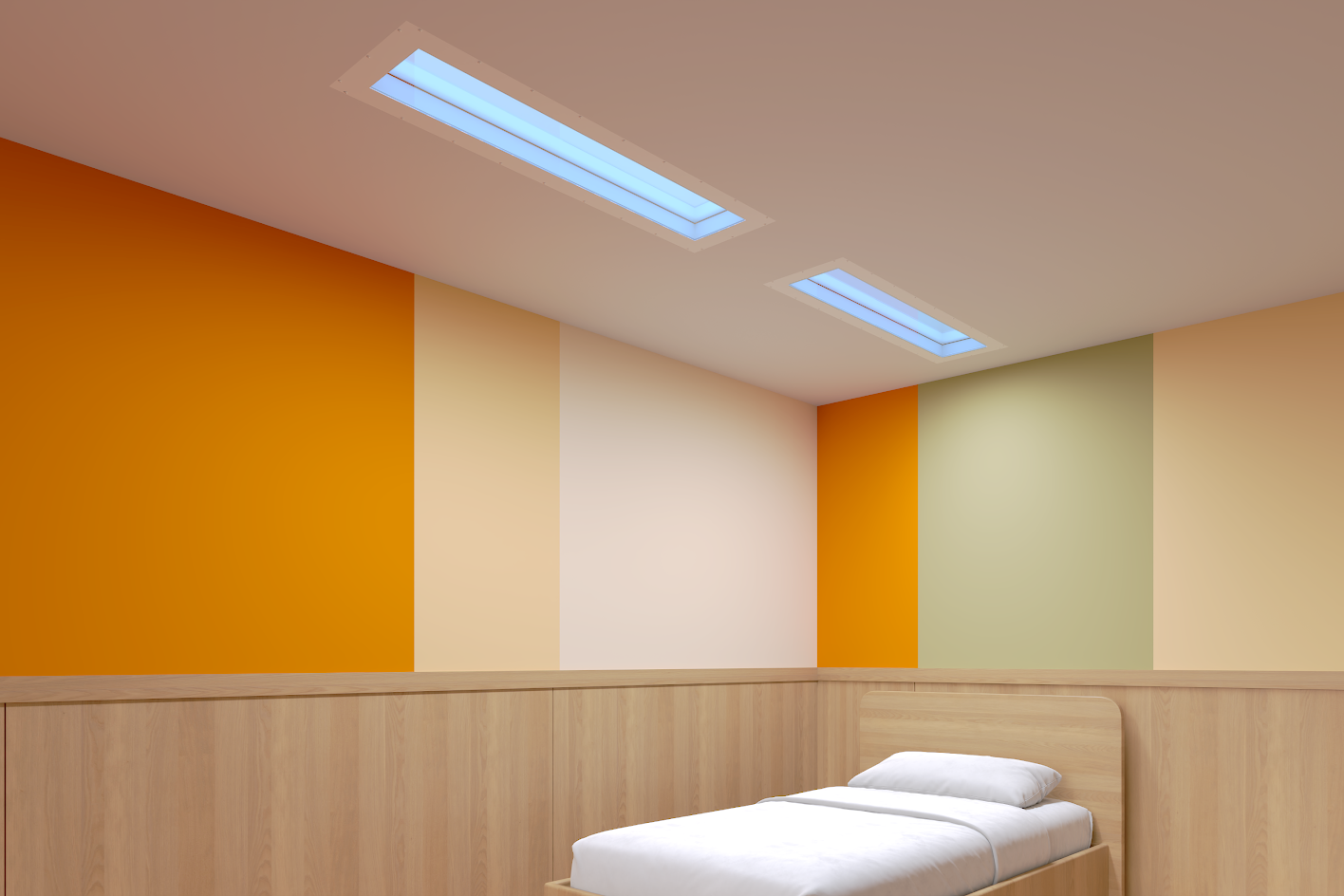

Circadian Sky Behavioral Health Installation

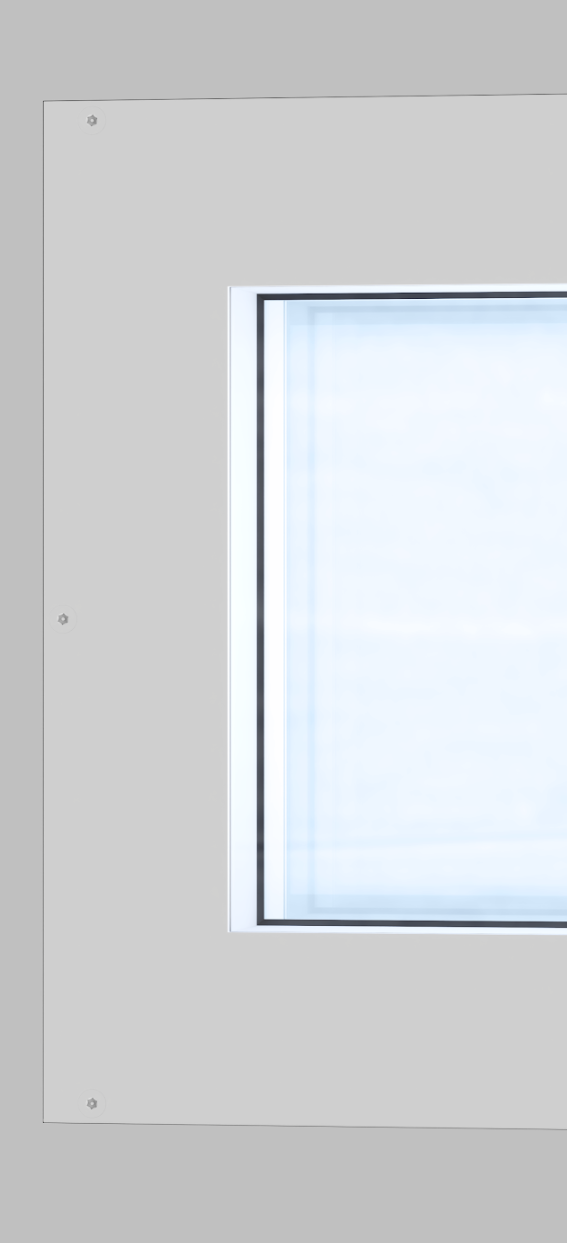

Circadian Sky Behavioral Health Trim Closeup

Description

The Circadian Sky Behavioral Health system is a purpose‑built version of our flagship technology for behavioral health and healthcare environments. It creates the immersive appearance of clear blue and sunset skies while incorporating enhanced safety features and clinical lighting protocols essential for patient care facilities. With controls designed for clinical workflows, the system dynamically adjusts spectrum and intensity to support circadian entrainment and therapeutic outcomes while meeting healthcare facility recommendations.

MODEL

Circadian Sky

SIZE

12 - 1×2 ft
14 - 1×4 ft
22 - 2×2 ft
24 - 2×4 ft
154 - 1.5×4 ft

CONTROL

CSB - Casambi
DMX - DMX512
DAL - DALI
10V1C - 0-10V DIM2WARM
10V2C - 0-10V2CH, DIM & CCT

PROGRAMMING CODE

P0000 - Dimmer Only
P0001 - Wall-clock based cycle
P0002 - Solar-clock based cycle

TRIM OPTIONS

BH - Behavioral Health Drywall
BHG - Behavioral Health Grid
C4 - Custom

Ideal Applications: Behavioral Health, Institutional High Abuse environments, Drywall or Grid installations.

System Highlights: Immersive sky ceiling with tunable spectrum and intensity, automated Circadian Cycle scheduling with on‑board geolocation and clock, flexible control options (Casambi, DALI, DMX, and 0‑10V), integral drivers for streamlined installation and commissioning. Safety & Clinical Design: Anti‑ligature, tamper‑resistant hardware with security Torx screws, high‑impact resistant clear polycarbonate lens, IC‑rated recessed housing with easy conduit/Romex entry, certified to UL standards by TUV with 5‑year warranty.

Specifications

CRI	91 – 97
R9	84 – 98
DUV	≤ 0.003 DUV (all CCTs)
SDCM	1 MacAdam ellipse step
Dimming	1–100 dimming range
Operating Voltage	110–277VAC 50–60Hz, DC-compatible
Power Supply	Integral to fixture, 24VDC output
Operating Environment	0°F – +104°F, 30–70% RH, non‑condensing
Insulation Contact	IC-rated
Color Temperature	Tunable 2,200K to 40,000K

Mounting Accessories	Grid clips kit, joist mounting kit – optional
Perceptible Flicker	No perceptible flicker, meets WELL v2 Feature 8 requirements
Camera Flicker	40kHz PWM dimming ensures no flicker even on mobile phone cameras
Glare	Meets WELL v2 glare requirements
Rated Life	L70 100,000 hours
Environmental Rating	IP20 standard
Standards	TÜV certified, adheres to UL 1598 standards
Warranty	5 years
Power Factor	≥ 0.97

Date

Project

Specifier

Type

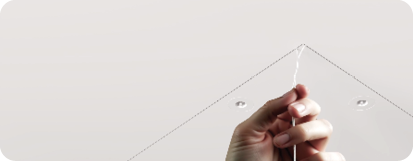

• Anti-ligature design
• Tamper resistant Torx security screws
• Countersunk and white to match trim

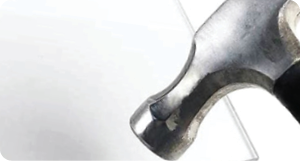

• High impact resistant polycarbonate lens

Input & Output

All sizes: 110-277V AC | CRI 92-98 | SCDM 1 | CCT 2200-40000K

SIZE	POWER	LUMENS
1x2 ft	35W	2030
2x2, 1x4, 1.5x4 ft	45W	2610
2x4 ft	75W	4350

Detailed Features

Anti-ligature construction with housing optimized for 5/8" drywall

High abuse, high impact clear polycarbonate lens

Standard security pin Torx screws, flush for discreet visual, field paintable to match trim

Built-in geolocation, clock, Circadian Cycle schedule

Industry leading 2,200K to 40,000K CCT color range with 92-98 CRI throughout

Industry only 1-step MacAdam output

Integral drivers

Recessed housing with 8x 1/2" K.O. for easy Conduit or Romex entry

UL-listed Insulated Contact (IC-Rated)

Certified to UL standards by TUV

5 years warranty

110-277 VAC and 155-431 VDC and 24 VDC for Central Battery Emergency

Date

Project

Specifier

Type

Exploded View

Side View

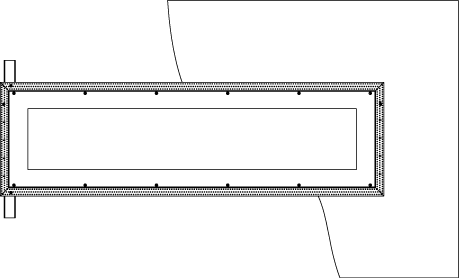

Cut-thru View

Dimensions

SIZE	FIXTURE LENGTH (L)	FIXTURE WIDTH (W)	FIXTURE DEPTH (D)	D1 (FIXTURE HEIGHT)	CUTOUT LENGTH (L2)	CUTOUT WIDTH (W2)	MINIMUM INSTALL DEPTH (D2)
1x2 ft	24-3/4"	12-3/4"	3-1/2"	3-1/2"	24-7/8"	12-7/8"	4-1/16"
2x2 ft	24-3/4"	24-3/4"	3-1/2"	3-1/2"	24-7/8"	24-7/8"	4-1/16"
1x4 ft	12-3/4"	24-3/4"	3-1/2"	3-1/2"	12-7/8"	24-7/8"	4-1/16"
2x4 ft	24-3/4"	48-3/4"	3-1/2"	3-1/2"	24-7/8"	48-7/8"	4-1/16"
1.5x4 ft	18-3/4"	48-3/4"	3-1/2"	3-1/2"	18-7/8"	48-7/8"	4-1/16"
